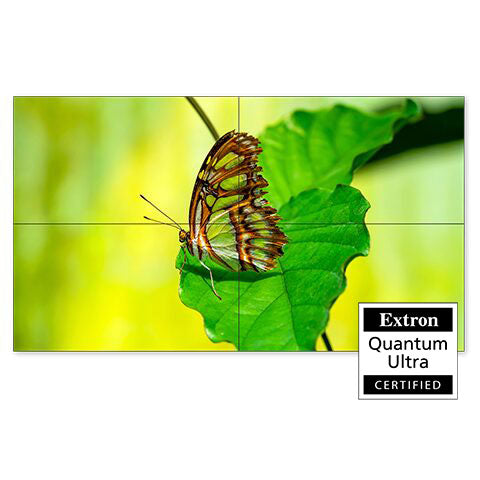

Sharp Electronics Corporation UN552-TMX4P | Display Video Wall, LED Direct-Lit Backlight, 150 Watt, 55" S-IPS Panel, 1920 x 1080 Resolution, 700 Candela per Sq Meter
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Sharp Electronics Corporation UN552-TMX4P | Display Video Wall, LED...
Description
Description
Also includes: Overframe Bezel Kit, Color Calibration Kit, IR/Remote Kit, FREE Standard Ground Freight.
NEC's complete 55" 2x2 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp™ and FrameComp technologies, combined with the new glass-to-edge design of the NEC UN551S and the full adjustment capabilities of the Peerless DS-VW775 mounting system, provide for a near seamless video wall without the need for additional third-party equipment. NEC provides everything besides the source to complete your video wall solution!
Legal Disclaimer To California Residents - WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Sharp Electronics Corporation - UN552-TMX4P - Features
- Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy
- Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
- S-IPS panel technology allows for excellent off-angle viewing and less color shift compared to other technologies
- Auto ID feature reduces install time in the single press of a button
- Expanded daisy chain options with UHD passthrough via DisplayPort enables UHD resolution across the entire wall
- Display wall calibration kit, Overframe Bezel Kit and IR/Human sensor complete the solution
- Overnight onsite exchange warranty ensures minimum downtime for maximum impact
- Input Switching Speed minimizes downtime between source transitions
- Human Sensor Accessory ensures digital signage is directed at a targeted audience
- Near field communication capabilities for setup and service
- Video daisy chain limitations apply when High-bandwidth Digital Content Protection (HDCP) is utilized
Specifications
Specifications
Sharp Electronics Corporation - UN552-TMX4P - Product Categories
- Audio and Visual
- Video Display Equipment
- Televisions
Sharp Electronics Corporation - UN552-TMX4P - Specifications
| Brand Name | Sharp Electronics Corporation |
|---|---|
| Manufacturer Part Number | UN552-TMX4P |
| Item Description | Display Video Wall, LED Direct-Lit Backlight, 150 Watt, 55" S-IPS Panel, 1920 x 1080 Resolution, 16:9 Aspect Ratio, 700 Candela per Sq Meter, 0.5 MM Pixel Pitch |
| UNSPSC Code | 52161505 |
| Display | - |
| Panel Technology | S-IPS |
| Viewable Image Size | 55 " |
| Aspect Ratio | 16:9 |
| Screen Resolution | 1920x1080 |
| Pixel Pitch | 0.5 mm |
| Pixels Per Inch | 45 @ native resolution |
| Backlight Type | LED Direct-lit |
| Brightness (maximum) | 700 cd/m2 |
| Contrast Ratio (typical) | 1200:1 (without local dimming) |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 47.62 x 26.79 in. / 1209.6 x 680.4mm |
| Orientation | Landscape/Portrait |
| Displayable Colors | More than 1.07 billion |
| Synchronization Range | - |
| Horizontal (Analog/Digital) | Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz |
| Input Signal | - |
| Video | Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort |
| Sync | Separate sync: TTL Level (Positive/Negative) |
| Composite sync: TTL Level (Positive/Negative) | Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
