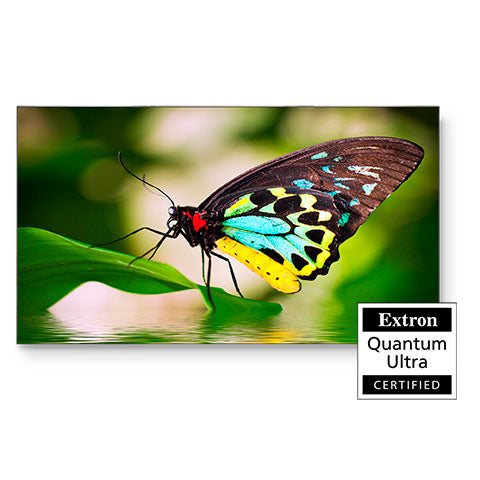

Sharp Electronics Corporation UN552 | Video Wall Display, LED Direct-Lit, 150 Watt, 55" S-IPS Panel, 1920 x 1080 Resolution, 700 Candela per Sq Meter, 0.5 MM Pixel Pitch
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
NEC's 55" UN552 sets the standard for quality color reproduction in video wall environments. Direct LED backlighting and factory calibration for intensity, gamma and RGB allows for ideal panel uniformity and an easy out-of-the-box experience. This display is integrated with the proprietary SpectraView Engine, which not only allows for ultimate color control but also allows for increased color calibration capabilities including white copy, self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when color matters most. This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display received a full chassis upgrade with faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities all while maintaining the minimal 3.5mm bezel gap.
Legal Disclaimer To California Residents - WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Sharp Electronics Corporation - UN552 - Features
- SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
- 700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
- New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
- Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
- NEC Display Wall Calibrator , MultiProfiler , and NaViSet Administrator 2 software compatible
Specifications
Specifications
Sharp Electronics Corporation - UN552 - Product Categories
- Audio and Visual
- Video Display Equipment
- Televisions
Sharp Electronics Corporation - UN552 - Specifications
| Brand Name | Sharp Electronics Corporation |
|---|---|
| Manufacturer Part Number | UN552 |
| Item Description | Video Wall Display, LED Direct-Lit, 150 Watt, 55" S-IPS Panel, 1920 x 1080 Resolution, 16:9 Aspect Ratio, 700 Candela per Sq Meter, 0.5 MM Pixel Pitch |
| UNSPSC Code | 52161505 |
| Display | - |
| Panel Technology | S-IPS |
| Viewable Image Size | 55 " |
| Aspect Ratio | 16:9 |
| Screen Resolution | 1920x1080 |
| Pixel Pitch | 0.5 mm |
| Pixels Per Inch | 45 @ native resolution |
| Backlight Type | LED Direct-lit |
| Brightness (maximum) | 700 cd/m2 |
| Contrast Ratio (typical) | 1200:1 (without local dimming) |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 47.62 x 26.79 in. / 1209.6 x 680.4mm |
| Orientation | Landscape/Portrait |
| Displayable Colors | More than 1.07 billion |
| Synchronization Range | - |
| Horizontal (Analog/Digital) | Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz |
| Input Signal | - |
| Video | Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort |
| Sync | Separate sync: TTL Level (Positive/Negative) |
| Composite sync: TTL Level (Positive/Negative) | Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
