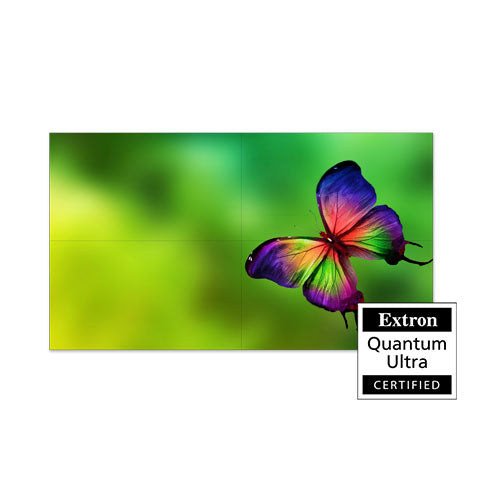

Sharp Electronics Corporation UN552S-TMX4P | Digital Signage Video Wall Bundle, 2x2, LED Direct-Lit Backlight, 165 Watt, 55" S-IPS Panel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Sharp Electronics Corporation UN552S-TMX4P | Digital Signage Video ...
Description
Description
NEC's complete 55" 2x2 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552S/UN552VS and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.
Legal Disclaimer To California Residents - WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Sharp Electronics Corporation - UN552S-TMX4P - Features
- Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy
- Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
- SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
- 700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
- New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
- Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
- NEC Display Wall Calibrator , MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible
Specifications
Specifications
Sharp Electronics Corporation - UN552S-TMX4P - Product Categories
- Audio and Visual
- Video Display Equipment
- Televisions
Sharp Electronics Corporation - UN552S-TMX4P - Specifications
| Brand Name | Sharp Electronics Corporation |
|---|---|
| Manufacturer Part Number | UN552S-TMX4P |
| Item Description | Digital Signage Video Wall Bundle, 2x2, LED Direct-Lit Backlight, 165 Watt, 55" S-IPS Panel, 1920 x 1080 Resolution, 16:9 Aspect Ratio, 700 Candela per Sq Meter |
| UNSPSC Code | 52161505 |
| Display | - |
| Panel Technology | S-IPS |
| Viewable Image Size | 55 " |
| Aspect Ratio | 16:9 |
| Screen Resolution | 1920x1080 |
| Pixel Pitch | 0.63 mm |
| Pixels Per Inch | 40 @ native resolution |
| Backlight Type | LED Direct-lit |
| Brightness (maximum) | 700 cd/m2 |
| Contrast Ratio (typical) | 1100:1 (without local dimming) |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 47.6 x 26.8 in. / 1209.63 x 680.34mm |
| Orientation | Landscape/Portrait |
| Displayable Colors | More than 1.07 billion |
| Synchronization Range | - |
| Horizontal (Analog/Digital) | Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz |
| Input Signal | - |
| Video | Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort |
| Sync | Separate sync: TTL Level (Positive/Negative) |
| Composite sync: TTL Level (Positive/Negative) | Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
