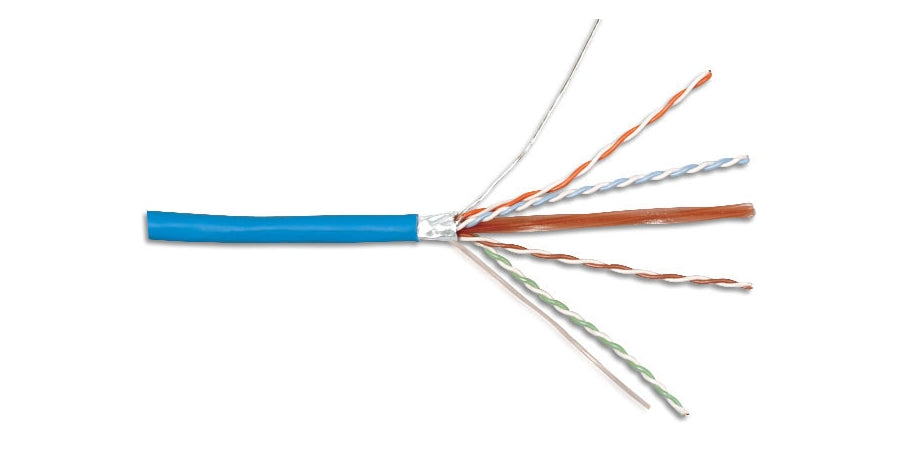

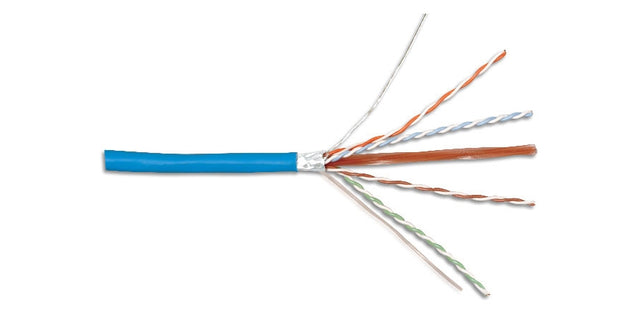

Siemon Company 9A6P4-A5-05-R1A | Cable, 23AWG, Solid, Plenum, 1000 ...
Description
Description
Siemon's Cat 6A F/UTP cable provides channel performance exceeding ANSI/TIA-568-C.2 Cat 6A requirements. When combined with our Z-Max shielded connectivity, the result is best in class channel performance capable of supporting 10GBASE-T operation over 100m, four connector topologies. in addition the screened construction ensures virtually zero alien crosstalk. the Cat 6A F/UTP cabling system supports emerging and converging IP applications like Voice Over IP (VoIP), IP video and future 10Gbps applications. the cable is ideally suited to support all levels of Power over Ethernet with an expanded operating temperature to 75 C and enhanced heat dissipation characteristics.
Specifications
Specifications
Siemon Company - 9A6P4-A5-05-R1A - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Data Cable
- Cat 6A Cable
Siemon Company - 9A6P4-A5-05-R1A - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | 9A6P4-A5-05-R1A |
| Bend Radius | 2 In. |
| Item Description | Cable, 23AWG, Solid, Plenum, 1000 ft., 4 Pairs, Yellow |
| Cable Type | F/Utp |
| Capacitance | 5.6 Nf/100M |
| Conductor Count | 4 Pair |
| Conductor Material | Bare Copper |
| Conductor Size | 313 Kcmil |
| Conductor Type | Solid |
| Fire Rating | Plenum |
| Frequency | 750Mhz |
| Impedance | 100 Ohm |
| Insulation Material | Fluorinated Ethylene Propylene |
| Jacket Color | Yellow |
| Jacket Material | Fr Pvc |
| Jacket Rating | Cmp |
| Length | 1000 Ft. |
| Outside Diameter | 0.28 In. |
| Package Type | Reel |
| Pair Count | 4 Pairs |
| Plenum | Plenum |
| Product Type | Cable |
| Resistance | ≪8.5 Ohm/100M |
| Shielded | F/Utp |
| Standards | Plenum |
| Temperature Rating | -20 To +75 C |
| Type | Data |
