Brand: Siemon Company
|
SKU:
MM07-SIC6-06

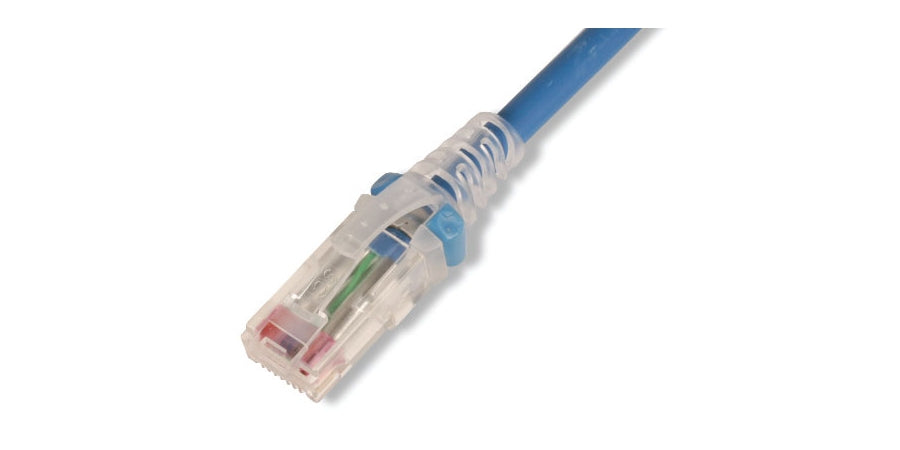

Siemon Company MC6-07-06 | Patch Cord (Cat 6) Stranded, UTP - Unshielded Twisted Pair, 7 ft., Blue
Regular price
$14.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Siemon Company MC6-07-06 | Patch Cord (Cat 6) Stranded, UTP - Unshi...
Regular price
$14.34
Unit price
Brand: Siemon Company
|
SKU:
MM07-SIC6-06
Regular price
$14.34
Unit price
Shipping calculated at checkout.
Description
Description
Siemon Company MC6-07-06 | Patch Cord (Cat 6), Stranded, UTP - Unshielded Twisted Pair, 7 ft., Blue
Siemons Category 6 series of modular cords are key components to ensure optimum channel performance of our Category 6 UTP systems. A variety of product enhancements contribute to the cords superior performance ” including 250 MHz rated stranded cordage, a patented crosspair isolator and an innovative 360 degree crimp, which provides excellent plug-to-cable strain relief without causing pair deformation.
Specifications
Specifications
Siemon Company - MC6-07-06 - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Cable Assemblies
- Cat 6 Copper Patchcords
Siemon Company - MC6-07-06 - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | MC6-07-06 |
| Amperage | 1.5 A At 25 C |
| Item Description | Patch Cord (Cat 6), Stranded, UTP - Unshielded Twisted Pair, 7 ft., Blue |
| Bend Radius | 25 Mm |
| Boot Color | Clear |
| Boot Material | Thermoplastic |
| Cable Outside Diameter | 5.3 Mm |
| Color | Blue |
| Conductor Size | 26 Awg |
| Conductor Type | Stranded |
| Connector 1 Type | Rj45 |
| Connector 2 Type | Rj45 |
| Contact Material | Copper Alloy With Contact Plating Of 50 Micro Inches Gold Or Equivalent |
| Contact Resistance | 20 M |
| Current Rating | 1.5 A |
| Dielectric Strength | 1000 Vdc Or Vac |
| End Type | Plug, Clear Boot : Plug, Clear Boot |
| Fire Rating | Ul 94-V0 |
| Insulation Resistance | 500 M |
| Jacket Color | Blue |
| Jacket Material | Thermoplastic, Lszh |
| Jacket Type | Cm; Lsoh |
| Length | 7 Ft. |
| Market Name | Vision |
| Operating Temperature - Maximum | 60 Degrees Celsius |
| Operating Temperature - Minimum | -10 Degrees Celsius |
| Outside Diameter | 0.2 In. |
| Pair Count | 4 |
| Product Type | Patch Cord (Cat 6) |
| Shielded | Utp - Unshielded Twisted Pair |
| Temperature Rating | -10 To +60 C |
| Wiring | T568A And T568B |
| UPC | 700416952039 |
| Weight | 3.00 lbs |
