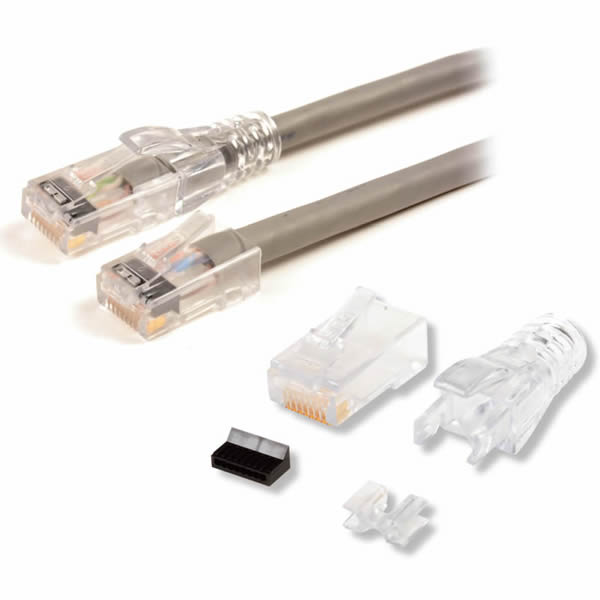

Siemon Company PS-8-8 | Modular Plug, Width 0.46 In., Shielded, Cat 5E, Number of Contacts 8, Polycarbonate
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Siemon Company PS-8-8 | Modular Plug, Width 0.46 In., Shielded, Cat...
Description
Description
Siemon offers a selection of modular plugs for patching, work area applications and cabling to end devices. Modular plugs can be terminated to exact cable length to maintain a neater and more organized installation. All plug contacts have 50µin. minimum of gold plating over nickel and meet TIA-1096 and IEC 60603-7 specifications. All plugs are compatible with Siemon PT-908 crimp tool. Our patented "universal" modular plug eliminates the need to stock more than one size modular plug. The UP-2468 permits field-termination of modular cords in 2-, 3-, or 4-pair increments and terminates twisted pair cable with 26 to 22 AWG (0.4 to 0.64mm) solid or 7-strand conductors with insulated conductor diameter of 0.86 to 0.99mm (0.034 to 0.039 in.).
Specifications
Specifications
Siemon Company - PS-8-8 - Product Categories
- Industrial Supplies
- Fasteners, Hardware and Raw Material
- Hardware
- Plugs
Siemon Company - PS-8-8 - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | PS-8-8 |
| Item Description | Modular Plug, Width 0.46 In., Shielded, Cat 5E, Number of Contacts 8, Polycarbonate |
| Body Material | Polycarbonate |
| Category | Cat 5E |
| Conductor Size | 26 to 23 AWG Sol and Str |
| Connector Type | RJ45 |
| Contact Finish | 50 µin. Gold-Plated |
| Height | 0.54 in. |
| Length | 0.89 in. |
| Material | Polycarbonate |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Product Type | Modular Plug |
| Shield Type | Shielded |
| Suitable For Use With | Pt-908 Crimp Tool |
| TYPE | MOD PLUG |
| Width | 0.46 In. |
