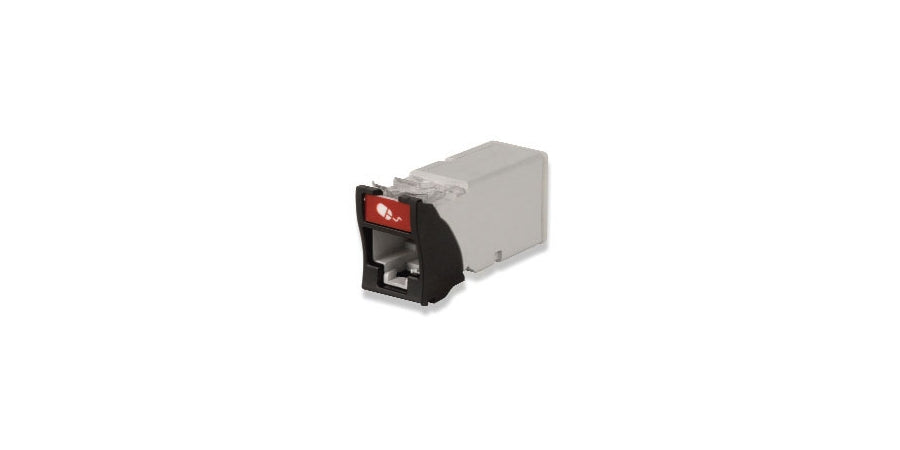

Siemon Company Z6-05 | UPT Outlet, 1-Port, RJ45 Connector, Yellow, Flat/Angle-Mount, Hybrid-Mount
The shielded Z-MAX outlet offers best-in-class performance in every critical specification, exceeding all Cat 6 and 6A performance requirements, including alien crosstalk. Its innovative features not only speed and simplify termination, but remove installation variability for consistently high-and repeatable performance-every termination, every time.
Specifications
Specifications
Siemon Company - Z6-05 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Outlets and Jacks
Siemon Company - Z6-05 - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | Z6-05 |
| Category | Category 6 |
| Item Description | UPT Outlet, 1-Port, RJ45 Connector, Yellow, Flat/Angle-Mount, Hybrid-Mount |
| Cable Size | 26 To 22 Awg Sol And Str |
| Category | 6 |
| Color | Yellow |
| Configuration Type | T568A/B |
| Configuration | 8-Position Rj45 |
| Connection | Rj45 |
| Connector Type | Rj45 |
| Dimensions | Lxwxh: 1.6 X 0.57 X 0.832 In. |
| Height | 0.832 In. |
| Installation Type | Front/Rear Faceplate |
| Length | 1.6 In. |
| Market Name | Vision |
| Material | Glass Reinforced Nylon |
| Module Type | Modular Utp Jack |
| Mounting | Hybrid Flat, Angled |
| Number Of Ports | 1 Port |
| Product Type | Utp Outlet |
| Sub Family | Mx6 Jacks |
| Size | 0.354 In. Od Cable |
| Termination | 110 |
| Temperature Rating | -10 To +60 C |
| Voltage | 1000 Vac/Dc |
| Width | 0.57 In. |
| Wiring Code | T568A/B |
