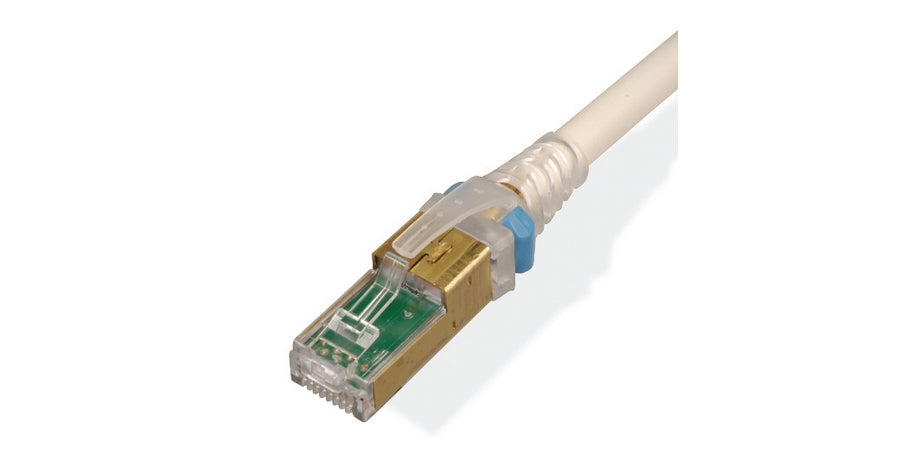

Siemon Company ZM6A-07-02 | Modular Patch Cord, UTP - Shielded, 0, 7 ft. (2.1m)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Combining the unparalleled performance of an exclusive PCB-based smart plug, alien crosstalk resistant construction and a host of innovative end-user features, Z MAX 6A UTP modular cords set the bar for Category 6A UTP patching. Modular cords are often overlooked key components to ensure optimum channel performance. Siemons Z-MAX category 6A UTP cords are 100% factory tested and feature a variety of product enhancements that contribute to the cords superior electrical and mechanical performance. These cords guarantee reliable long-term category 6A application assurance throughout the life of the warranty. The cable used to manufacture these cords exceeds the specifications set forth by both ANSI/TIA-568.2-D and ISO/IEC 11801-1Ed 1.0.
Specifications
Specifications
Siemon Company - ZM6A-07-02 - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Cable Assemblies
- Cat 6A Copper Patchcords
Siemon Company - ZM6A-07-02 - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | ZM6A-07-02 |
| Amperage | 1.5 A At 25 C |
| Item Description | Modular Patch Cord, UTP - Shielded, 0, 7 ft. (2.1m) |
| Bend Radius | 1 In. (25Mm) |
| Boot Color | Clear |
| Boot Material | Polycarbonate |
| Cable Outer Diameter | 0.25 In. (6.3Mm) |
| Color | White |
| Conductor Size - Awg | 26 |
| Conductor Size | 26 Awg |
| Conductor Type | Stranded Bare Copper |
| Connector Type | Plug Modules To Plug Modules |
| Contact Material | Copper Alloy |
| Contact Resistance | 10 Mohm |
| Dielectric Strength | 1000 Vdc Or Vac |
| End Type | Plug, Clear Boot : Plug, Clear Boot |
| Fire Rating | General Purpose;Lszh |
| Insulation Resistance | 500 Mohm |
| Jacket Color | White |
| Jacket Material | Thermoplastic |
| Jacket Type | Cm/Ls0H |
| Length - Metric | 2.1M |
| Length | 7 Ft. (2.13 M) |
| Outside Diameter | 0.25 In. |
| Pair Count | 4 Pairs |
| Product Type | Modular Patch Cord |
| Shielded | Utp - Shielded |
| Temperature Rating | -20 To +75 C |
| Wiring | T568A/B |
