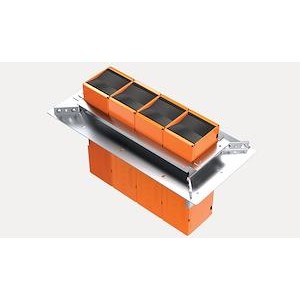

Specified Technologies STI EZDG444S2 | Floor Grid, Painted Orange, Steel, Galvanized
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Specified Technologies STI EZDG444S2 | Floor Grid, Painted Orange, ...
Description
Description
The EZ path series 44+ fire-rated pathway is designed for high cable volume conditions through fire-rated walls and floors while eliminating the burden of ongoing maintenance. The series 44+ incorporates self-sealing intumescent pads that automatically adjust to the installed cable fill without the need for user manipulation. Under fire exposure, the intumescent pads expand and swell resisting the passage of smoke and flame.
Specified Technologies Sti - EZDG444S2 - Features
- Self Sealing design provides exceptional fire and smoke leakage ratings
- Allows for easy Moves, Adds, and Changes
- Designed for New and Existing conditions
- Variety of accessories available for any field condition
- Modular grid system for riser applications
Specifications
Specifications
Specified Technologies Sti - EZDG444S2 - Product Categories
- Enclosures and Cable Routing
- Other Enclosures and Cable Routing
Specified Technologies Sti - EZDG444S2 - Specifications
| Manufacturer Name | Specified Technologies STI |
|---|---|
| Manufacturer Part Number | EZDG444S2 |
| Item Description | Floor Grid, Painted Orange, Steel, Galvanized |
| Application | Fire Rated Wall and Floor Penetration, New/Old Work |
| Approval Listings | ASTM E814 (UL 1479), CAN/ULC-S115, UL Certified |
| Color | Silver |
| Finish | Galvanized |
| For Use With | 4 Pathways |
| Height | 10-1/2 in. |
| Length | 14 in. |
| Material | Steel |
| Product Type | Floor Grid |
| Rating | 1-4 Hours |
| Size | Opening W x L: 6 x 18 in., Frame W x L: 11 x 23 in. |
| Type | One-Slot Bank Floor Grid, 4 Device Capacity |
| Width | 18 in. |
