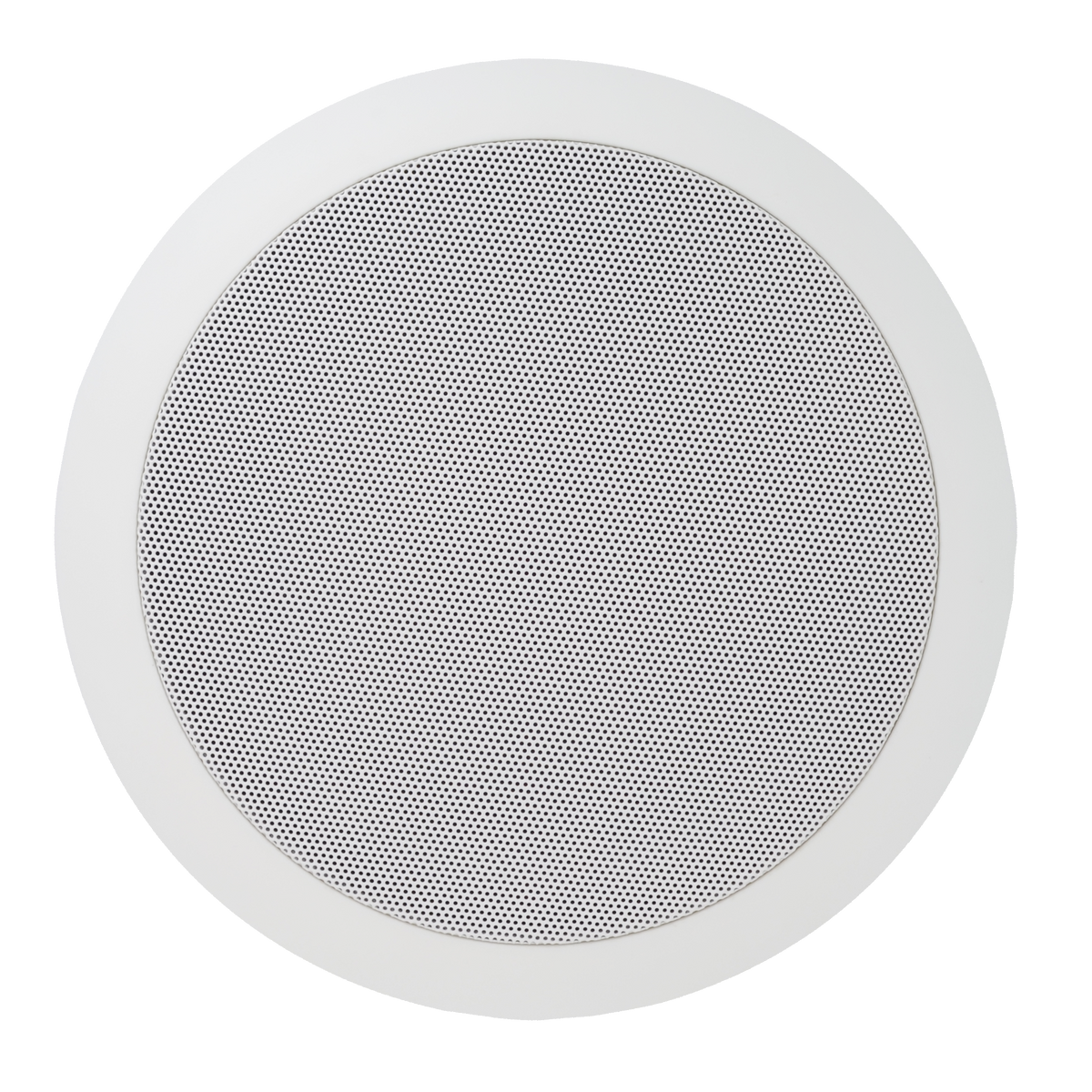

Speco Technologies SPG66T | 6" Speaker Grill Combo

Speco Technologies - SPG66T - Specification Description

• 6 Inch Modern Grille Speaker
• RMS Power: 10 Watt
• Maximum Power: 15 Watt
• Transformer Type: 70/25 Volt
• Transformer Power: 5 Watt, 2.5 Watt, 1 Watt, 0.5 Watt, 0.25 Watt and 8 Ohm
• Termination Type: Colored Leads
• Sensitivity (1 Watt/1 m): 91 dB
• Maximum SPL (Pax/1M): 100 dB
• Driver Impedance: 8 Ohm
• Magnet: 5 oz Ferrite
• Frequency Response Range: 90 Hz - 20 kHz
• Dispersion at 1000Hz: 120 Degree Conical
• Driver: 8 Inch Paper Cone Woofer, 8 Inch Dual Cone Tweeter
• Mounting Dimensions: 9.5 Inch Diameter
• Minimum Mounting Depth: 2.8 Inch
• Baffle Material: High Impact Polystyrene
• Grille Material: Steel
• Color: Off-White
• Dimension: 10.75 Inch Dia x 3.5 Inch Depth

Speco Technologies - SPG66T - Overview

• Modern style mesh steel grille
• 70/25V transformer with colored leads
• Dog-ear mounting clamps for secure installation
• also available with volume control knob
• Products are in compliance with NDAA Section 889 Part B Guidelines

Speco Technologies - SPG66T - Specifications

• Speco Technologies SPG66T Specification Sheet
• Speco Technologies SPG66T User Manual
