System Sensor COSMOD2W - Module - 2W I4 Interface Module
Description
Description
Integration: The i4 module allows up to 12 i4 Series or compatible i3 Series smoke detector models to be integrated into a fire alarm panel using only 2 to 3 zones: a smoke zone, a CO zone and an optional trouble zone. Detectors sound Temp 3 for smoke and Temp 4 for CO events. The i4 module can be used to alarm all sounders in compatible detectors for smoke and CO events. When one detector detects smoke or CO and goes into alarm, all connected detectors alarm, offering the highest level of warning t o the homeowner.
Installation ease: The i4 Series Interface Module mounts to a 411/16-inch square back box for quick and easy installation. Terminal blocks with durable SEMS screws ensure a reliable connection. It also has pre-drilled holes for easy m ounting inside a metal enclosure
Intelligence: The i4 Interface Module allows i4 and compatible i3 smoke detector models (2WTA-B and 4WTA-B) to communicate with any listed fire alarm control panel capable of utilizing this module.

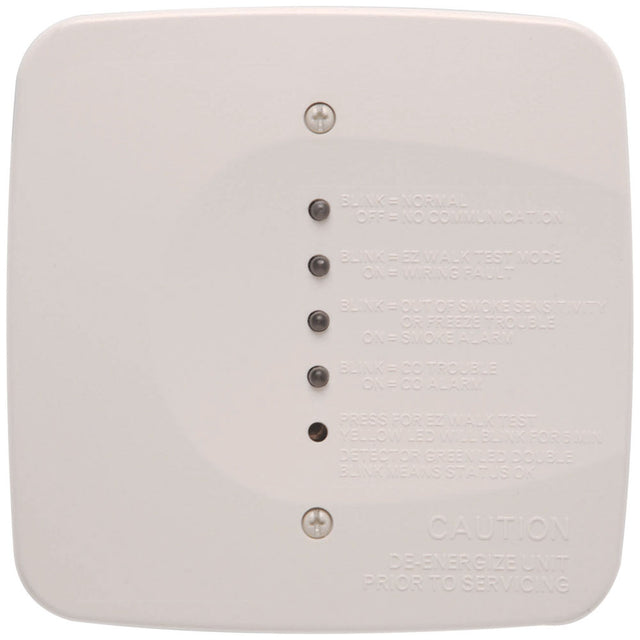

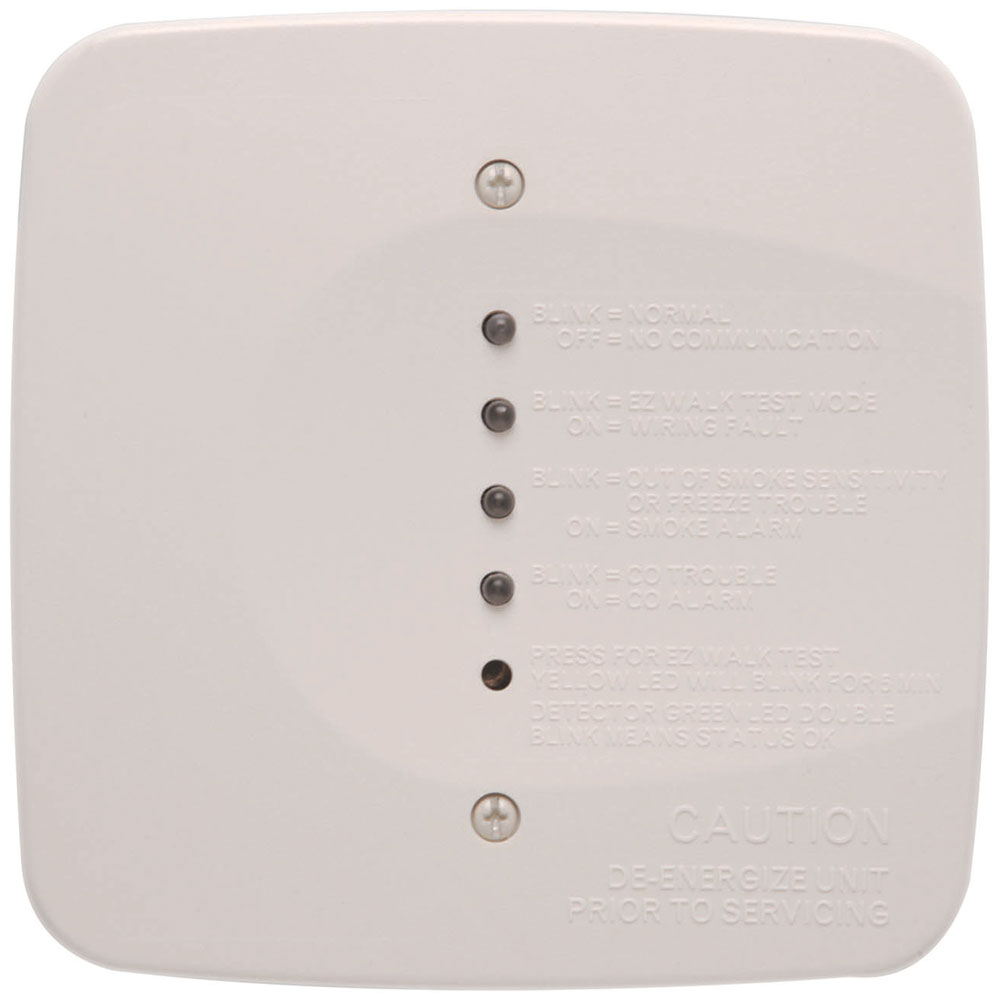

Instant inspecti: The i4 Interface Module provides LED status indication for the loop, displaying normal operation, loop wiring fault, smoke events, smoke maintenance (2-wire only), CO events, and CO maintenance/end-of-life.
System Sensor - COSMOD2W - Features
- Easily integrates up to 12 compatible detectors to a wide range of control panels
- 2-wire module is compatible with COSMO-2W combination detectors and 2WTA-B smoke detectors.
- 4-wire module is compatible with COSMO-4W combination detectors and 4WTA-B smoke detectors.
- Sends distinct smoke and CO signals from i4 detectors to the panel
- LED indication shows when a detector on the loop requires cleaning or maintenance (2-wire detectors only)
- Initiates the EZ Walk loop test (2-wire detectors only)
- Module terconnects the sounders of all devices connected to it. No RSS-MOD is required. Optional trigger inputs are provided to sound multiple modules.
Specifications
Specifications
System Sensor - COSMOD2W - Product Categories
- Security
- Fire Alarm Systems
- Control Panels
System Sensor - COSMOD2W - Specifications
| UNSPSC Code | 46171600 |
|---|---|
| Brand Name | System Sensor |
| Manufacturer Part Number | COSMOD2W |
