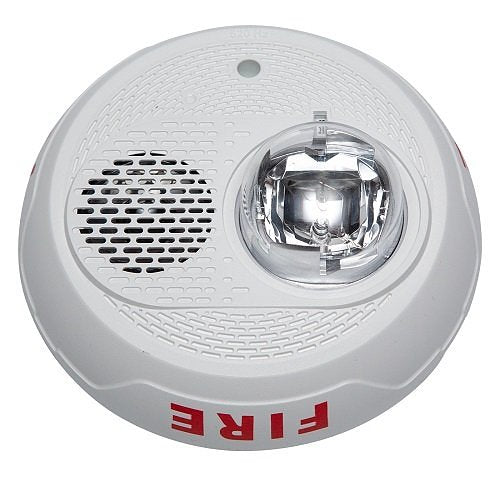

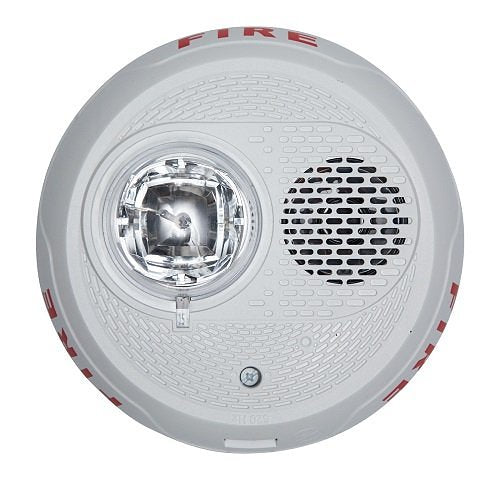

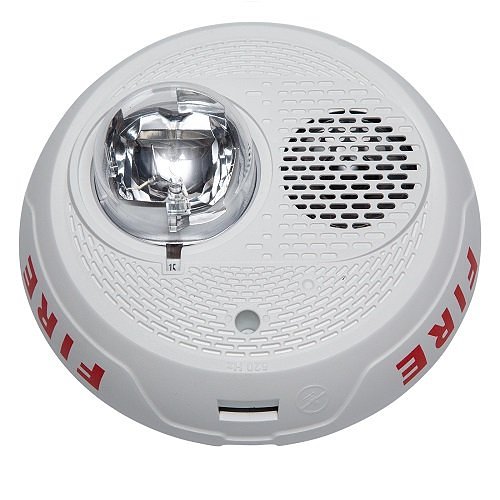

System Sensor PC2WL-LF - Fire Signal - Lf Sounder Strobe; Ceiling;
Description
Description
The L-Series offers the most versatile and easy-to-use line of low frequency sounder and low frequency sounder strobes in the industry. With white and red plastic housings, listed for wall and ceiling mounting, L-Series Low Frequency can meet virtually any application requirement.
The low frequency sounder and low frequency sounder strobes were designed to address the NFPA 72 sleeping space requirements that require a low frequency notification appliance that operates within frequency range of 520 Hz ± 10% and is of a square wave tone.
Like the entire L-Series product line they include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults. To further simplify installation and protect devices from construction damage, L-Series uses a universal mounting plate with an onboard shorting spring, so installers can test wiring continuity before the device is installed.
System Sensor - PC2WL-LF - Features
- 521 Hz ± 10% square wave tone, NFPA compliance
- Full candela range plus High/Low tone options to optimize current draw for a wide variety of applications
- Field-selectable candela settings: 15, 30, 75, 95, 115, 150, and 177
- Field-selectable candela settings. Wall units: 15, 30, 75, 95, 110, 135, and 185. Ceiling units: 15, 30, 75, 95, 115, 150, and 177
- Rotary switch for High/Low, Temp3, Temp4, and Continuous settings. Sounder-only models also offer a Coded setting.
- Plug-in design with minimal intrusion into the back box
- Mounting plate shorting spring checks wiring continuity before device installation
- Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices (Direct replacement for HW/R-LF and P2R/WH-LF)
- Compatible with MDL3 sync module
- Sounders listed for ceiling and wall
- General Information
- Name: System Sensor PC2WL-LF L-Series Indoor Selectable Output Low Frequency Sounder Strobe, 2-Wire, Ceiling Mount, "FIRE" Marking, White, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Notification Appliances, Sounder Strobes
- UPC Code: 783863056055
- Country of Origin: Mexico. Country of origin is subject to change.
Specifications
Specifications
System Sensor - PC2WL-LF - Product Categories
- Security
- Fire Alarm Systems
- Fire Notification
System Sensor - PC2WL-LF - Specifications
| Device Type | Strobe |
|---|---|
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Connectivity Technology | Wired |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | PC2WL-LF |
| Product Functions | Alarm |
| Product Model | PC2WL-LF |
| Product Name | PC2WL-LF Security Strobe Light |
| Product Series | L |
| Product Type | Security Strobe Light |
System Sensor - PC2WL-LF - Physical Characteristics
| Application/Usage | Fire, Indoor, Nursing Home |
|---|---|
| Color | White |
| Form Factor | Ceiling Mount |
| Lens Color | Clear |
| Product Color | White |
| Technical Information | - |
| Alarm Type | Audible, Visual |
