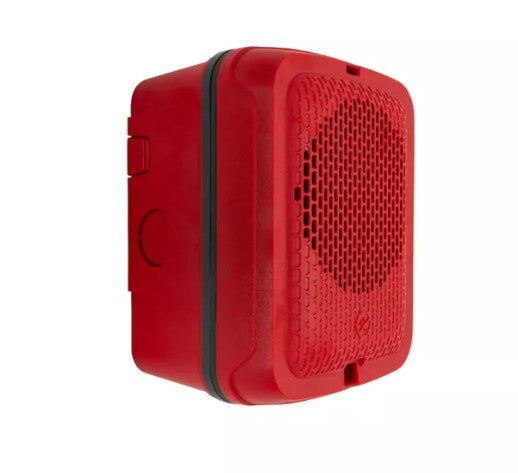

System Sensor SPRKL Outdoor Speaker Red Wall
Description
Description
System Sensor L-Series Outdoor Speakers and L-Series with LED Outdoor Speaker Strobes offer the most versatile and easy-to-use line of weatherproof speakers and speaker strobes that can meet virtually any application requirement, including outdoor, indoor, wet, dry, and washdown environment applications in temperatures from ?40°F to 151°F. The speakers provide a broad frequency response range, low harmonic distortion offering a highfi delity sound output while offering a high-volume sound output for use in high ambient noise applications.
System Sensor - SPRKL - Features
- Weatherproof per NEMA 4X, IP56 as a standalone device
- Rated from -40°F to 151°F LED technology provides lower current draw
- Rotary switches for candela, speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1, and 2 watts)
- Mounting plates with wirenuts are provided to make the connection between the field wiring and the mounting plates
- Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL Sync Module
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 VDC
Specifications
Specifications
System Sensor - SPRKL - Specifications
| Standard Operating Temperature | -40 °F to 151 °F (-40 °C to 66 °C)) |
|---|---|
| Humidity Range | 0 to 95 ±5% |
| Power | ¼, ½, 1, 2 Watts |
| Frequency Range | 400 to 4000 Hz |
| Maximum Supervisory Voltage (Speakers) | 50 VDC |
| Maximum Supervisory Voltage (Strobe) | 33 VDC |
| Strobe Flash Rate | 1 Flash Per Second |
| Nominal Voltages, Speakers | 25 Volts or 70.7 Volts (nominal) |
| Nominal Voltage, Strobe Regulated | 24 VDC |
| Operating Voltage Range, Strobe | 16 to 33 VDC |
| Input Terminal Wire Gauge | 12 to 18 AWG |
| Dimensions Wall Speaker Strobes (including lens) | 6.69" L x 5.16" W x 2.47" D (170mm L x 131mm W x 63mm D) |
