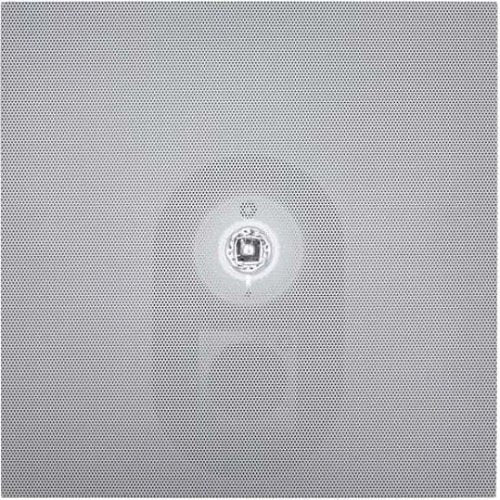

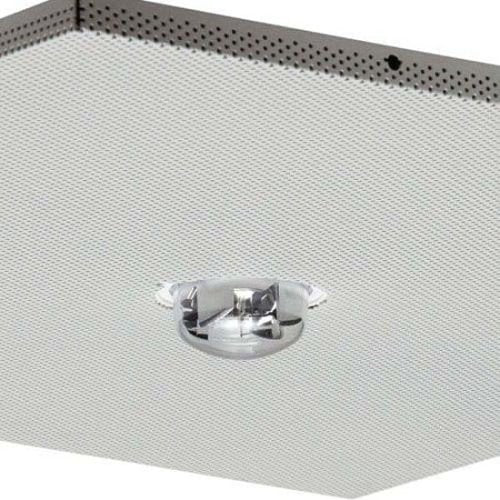

System Sensor SPSCWL-TILE - Speaker - Ceiling Speaker Strobe 2X2Tile
Description
Description
System Sensor L-Series Drop-In Ceiling speaker strobes, speakers and strobes
install faster than the traditional ceiling speaker or speaker strobe appliances. Neutral grill pattern makes this an excellent option for schools, office buildings, retail, restaurants, and hospital applications. Quickly upgrade your existing Horn Strobe application to a voice system or spec this for your next new construction project.
These devices also enable faster installations by providing quick wire nut connections, rotary switches to select voltage and power settings, and seven field-selectable candela settings for ceiling speaker strobes.
The low total harmonic distortion of the L-Series speaker offers high fidelity sound output while still offering high volume sound output for use in high ambient noise applications.
System Sensor - SPSCWL-TILE - Features
- Complete drop-in suspended ceiling speaker and speaker strobe assembly
- L-Series Platform, common speaker and low current strobe
- Field selectable candela settings on strobe units: 15, 30, 75, 95, 115, 150, and 177
- Automatic selection of 12- or 24-volt operation at 15 and 30 candela
- Rotary switch simplifies field selection of speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1 and 2 watts)
- Speakers offer high fidelity and high volume sound output
- Compatible with System Sensor synchronization protocol
- Electrical compatibility with existing L-Series, SpectrAlert, and SpectrAlert Advance products
- UL Listed 2043, suitable for use in air-handling spaces
- Sized to use with standard drop-in ceiling systems 2 ft x 2 ft (61 cm x 61 cm opening)
- General Information
- Name: System Sensor SPSCWL-TILE L-Series Drop-In Ceiling Tile Speaker and Strobe, UL-Listed with "FIRE" Marking, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Notification Appliances, Speaker Strobes
- UPC Code: 783863056918
- Country of Origin: Mexico. Country of origin is subject to change.
Specifications
Specifications
System Sensor - SPSCWL-TILE - Product Categories
- Security
- Intrusion Detection
- Sirens and Strobes
System Sensor - SPSCWL-TILE - Specifications
| Color/Lens Color | White |
|---|---|
| Type | Strobe |
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | SPSCWL-TILE |
| Product Functions | Alarm |
| Product Model | SPSCWL-TILE |
| Product Name | SPSCWL-TILE L Speaker Strobe |
| Product Series | L |
| Product Type | Speaker Strobe |
System Sensor - SPSCWL-TILE - Physical Characteristics
| Application/Usage | Building, Fire, Hospital, Indoor, Office, Restaurant, Retail Shop, School, Signaling System |
|---|---|
| Depth | 3.3" |
| Depth (mm) | 83.566 |
| Form Factor | Ceiling Mount |
| Height | 23.7" |
| Height (mm) | 601.726 |
| Product Color | White |
| Width | 23.7" |
| Width (mm) | 601.726 |
| Technical Information | - |
| Alarm Type | Audible, Visual |
