Tektone Sound & Signal IR331 | IR331 Single, IR332 Dual Patient...
Description
Description

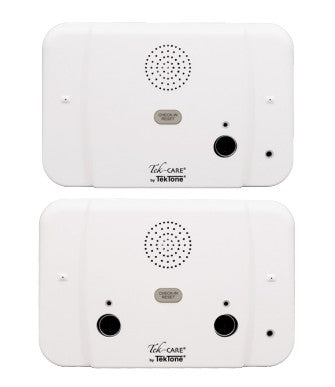

The IR331 Single Patient Station provides reliable full-duplex, hands-free communication between patient and nurse, plus programmable privacy, paging, and patient priority from the master station. Calling the nurse is accomplished by pressing the call cord button or the nurse button on the pillow speaker. The IR331 includes a single DIN jack for the call cord and a reset button. To remove the call cord or pillow speaker without the alarm, hold down the reset button for three seconds before pulling out the plug.
Tektone Sound & Signal - IR331 - Features
- Tri-color LEDs for call indication
- One or two jacks for call cords or pillow speakers
- Provides interfaces for up to 6 TC120 peripherals, dome light, bed receptacle and control outputs e.g.,light control
- No dummy plugs needed to prevent "cord out" call
- No visible mounting screws
- Fully supervised wiring to the station hub
Specifications
Specifications
Tektone Sound & Signal - IR331 - Specifications
| Manufacturer Part Number (MPN) | IR331 |
|---|---|
| Brand Name | Tektone Sound & Signal |
| Item Description | IR331 Single, IR332 Dual Patient Station |
| Dimensions | 4.80"H × 7.35"W × 2.5"D (122 mm × 187 mm × 64 mm) |
| Construction | Flame-retardant (UL®94V-0) plastic faceplate |
| Speaker | 1.57" Diameter (40 mm) |
| Connections | Plug-in 12-pin connector for up to 6 TC120 peripherals 8P8C jacks for station cabling |
| Housing | 2- or 3-gang masonry box |
| Wiring | Control and power over CAT6 cable |
