Tektone Sound & Signal PK152 | Provides Power And Control Circu...
Description
Description

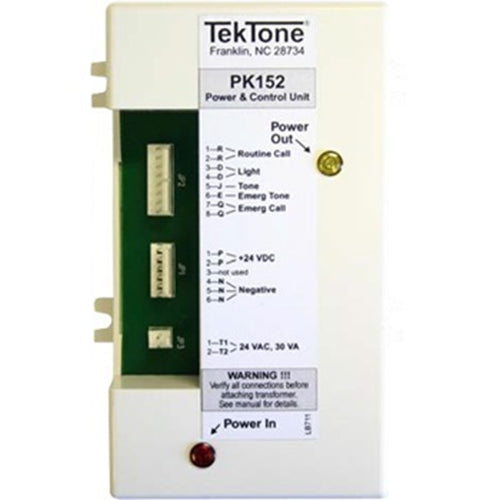

The PK152 Annunciator Control Unit provides power and control circuits to operate Tek-CARENC150, NC200 and NC110 nurse call systems or the Tek-SAFE area of rescue assistance system.
The PK152 contains the electronic circuitry necessary to detect the presence of normal and emergency calls, and to generate audible and visual control signals.
It provides steady or intermittent voltages to operate visual signaling devices.
The PK152 supports up to 1 amp of current load from field devices, and supports interconnection of a secondary power supply (PK800A) to increase the output current load to 3 amps.
Protective circuitry has been incorporated to protect routine and emergency call commons from shorts.TekTone's PK152 is a drop-in replacement for the PK151A/N, and adds these features:Plug-in connectors for all wiring.Status indicators for both input and output power.
Tektone Sound & Signal - PK152 - Features
- Red LED for power in; Green LED for power out.
- UL 1069 Listed.
- High-quality electronic components.
- Provides steady light and slow tone for normal call; flashing light and rapid tone for emergency call.
- Routine and emergency commons incorporate short-protection circuitry.
Specifications
Specifications
Tektone Sound & Signal - PK152 - Specifications
| Type | KEY SYSTEM |
|---|---|
| UNSPSC Code | 43191500 |
| Manufacturer | TekTone Sound & Signal Mfg., Inc |
| Manufacturer Part Number | PK152 |
| Product Name | Annunciator Control Unit |
| Product Type | Annunciator Control Unit |
| Depth | 1.9" |
| Width | 3.1" |
| Height | 5.5" |
| Additional Information | High-quality integrated circuitry and electronic components. Red LED for power in; Green LED for power out. Provides steady light and slow tone for normal call; flashing light and rapid tone for emergency call. Routine and emergency commons incorporate short protection circuitry. Construction: Electronic components mounted on a printed circuit board and housed in a rugged plastic case. Connections: Pigtails. Temperature: 0°C-50°C. Mounting: Surface-mounted (within 50' of master station). Power: 24 VAC, 30VA. |
| Certifications & Standards | UL 1069 |
| Compatibility | Tek-CARE NC-150, NC-200 and NC-110 nurse call systems Tek-SAFE Area of Rescue assistance system |
