Tempo Communications FIP100 KIT | FIP100 Fiber Inspection Probe
Description
Description

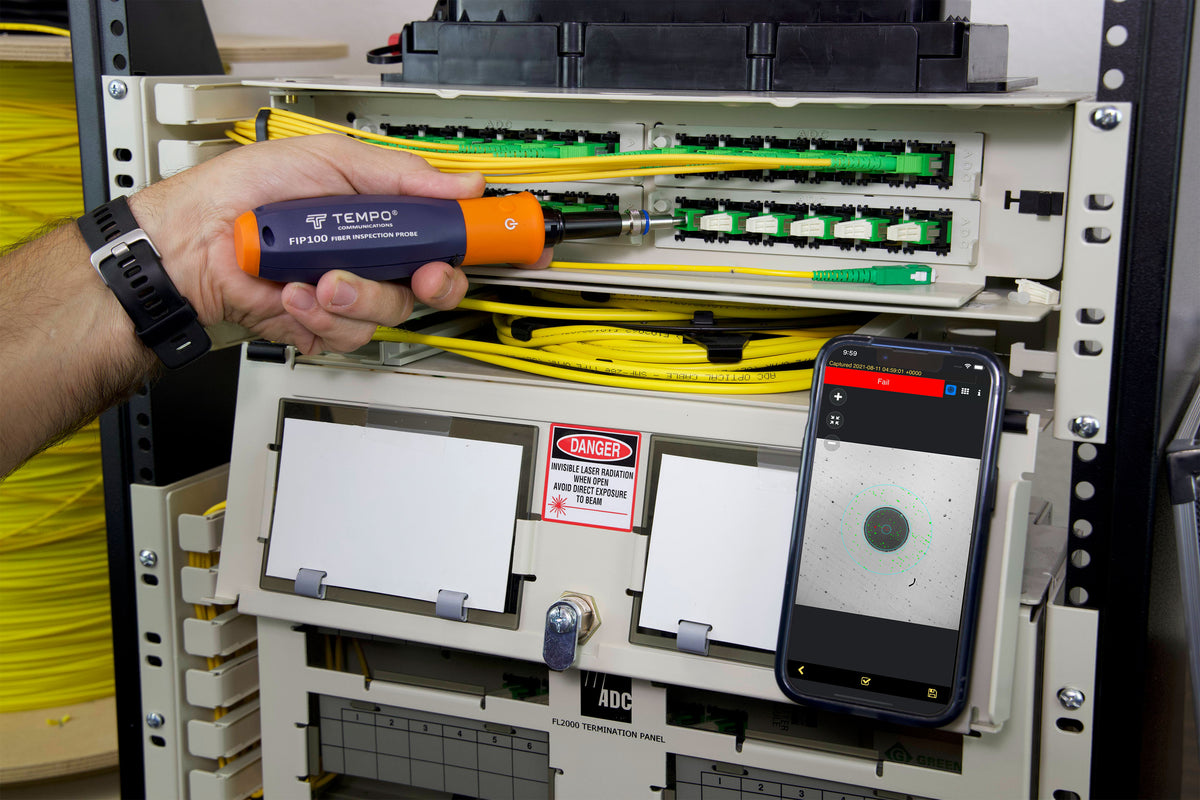

The FIP100 from Tempo is a fully automated inspection tool that provides fast and reliable analysis of fiber optic connector end faces and bulkheads. With a single button press, the FIP100 automatically focuses, captures an image of the connector endface, and provides a pass/fail result. The pass/fail status of the connector is instantly reported via a red/green LED on the probe. Detailed results are shown on the iOS or Android app, which provides PDF report generation and sharing. Both apps are pre-loaded with pass/fail requirements from IEC 61300-3-35, as required by all major telecommunications service providers.
Tempo Communications - FIP100 KIT - Features
- The FIP100 from Tempo is a fully automated inspection tool that provides fast and reliable analysis of fiber optic connector end faces and bulkheads.
- With a single button press, the FIP100 automatically focuses, captures an image of the connector endface, and provides a pass/fail result.
- The pass/fail status of the connector is instantly reported via a red/green LED on the probe. Detailed results are shown on the iOS or Android app, which provides PDF report generation and sharing.
- Both apps are pre-loaded with pass/fail requirements from IEC 61300-3-35, as required by all major telecommunications service providers.
Specifications
Specifications
Tempo Communications - FIP100 KIT - Specifications
| Field of View (FOV) | Live and Captured: 612 x 460 ?m |
|---|---|
| Manual Detection Capability (minimum) | 0.25 ?m |
| Stored Image Size | 2592 x 1944 (5M) pixels |
| Centering | Auto-centering (<1 sec) |
| Operating Time (typical) | 60 hours d; 8 hours continuous |
| Operating Temperature | 0 to +50 °C; 95% RH, non-condensing |
| Weight | 150 g (5.3 oz) |
| Type | Testkit |
| UNSPSC CODE | 43222643 |
