Brand: Tempo Communications | SKU: 10450438

Tempo Communications TM900 | Telephone Test Set

Regular price $500.96
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

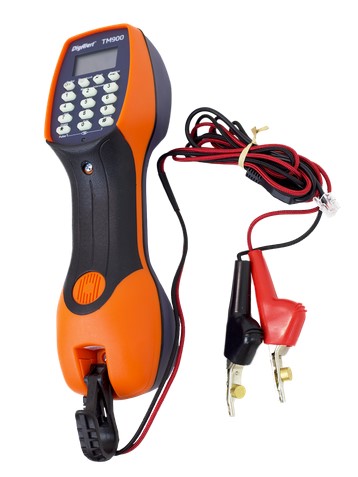

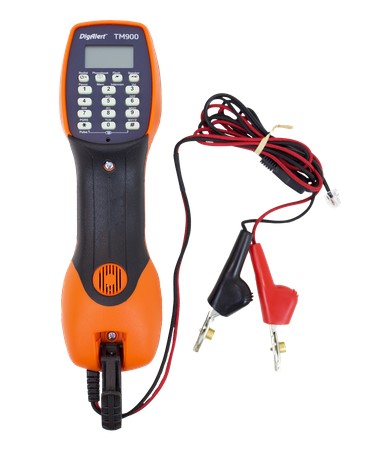

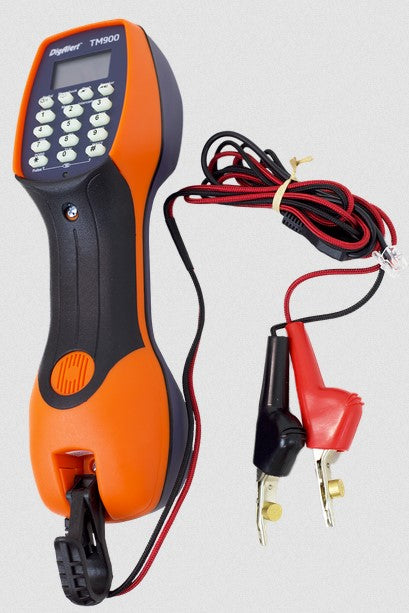

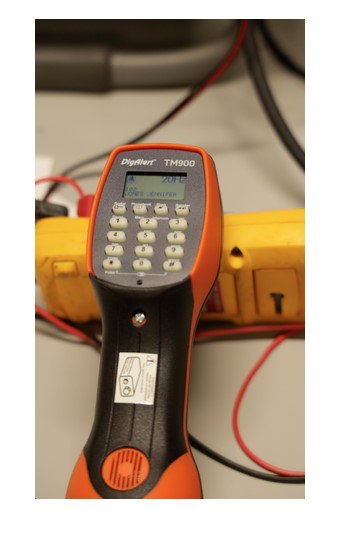

Tempo Communications TM900 | Telephone Test Set

Whether installing, servicing, or maintaining voice service and data on copper lines, you’ll want the newest member of the Nautilus telephone test set family at your side. The TM900 offers a new LCD screen display showing “caller ID” and related features, plus a comprehensive phone book including ten number “last number redial”, direct display of line voltage, loop current, ringing frequency, and the ability to receive DTMF strings. All while still offering protection of digital traffic and hands-free speakerphone functionality, plus much more. With this innovative design, Tempo continues investment in “butt-in” test set technology, setting new, unmatched standards in both quality and customer satisfaction.

The TM900 butt set gives meaning to the term “weatherproof”: This award-winning, waterproof case design allows technicians to operate with confidence in even the most extreme weather conditions. Other key advancements include digital service and high-voltage alarm, and a quick-release, non-metallic belt clip composed of glass-filled nylon. This combination of rugged technology enables Tempo to offer the best warranty in the industry – 3 years.

Tempo Communications - TM900 - Features

  • Works dial tone on DSL lines
  • High voltage protection with alarm
  • Safe around digital services
  • Caller ID & Call Waiting tests
  • DTMF receive
  • Pair ID tone generator
  • Duplex Hands-Free “speakerphone”
  • Dead pair intercom modes
  • Display of polarity, voltage, current, and ringing frequency

Specifications

Tempo Communications - TM900 - Specifications

Telephone Compatibility**TIA / EIA-470-B and ETSI
Loop Limits (at 48 V)Resistance: >5 k? Minimum Current: <10 mA
DC Resistance Off Hook: <300?Off Hook: <300? On Hook: >10 M?
Monitor Impedance>400 k?
Pulse Dialing**Rate: 10 pps or 20 pps Break: 60% or 66% Inter-Digit Pause: 800 ms (leakage during break >1 M)
DTMF/Tone Dialing**-4 dBm / -6 dBm (ANSI); -9 dBm / -11 dBm (ETSI)
Memory Dialing:10 Memories 10 LNR each holding 30 digits including pauses
Flash/Timed Break Recall**100 ms 270 ms 600 ms
Line ProtectionOver-voltage: 360 Vdc Continuous >500 V Peak Current Limited: 125 mA Lightning: ITU K.17, 20, 21 (1500 V)
Intercom Range6 km
Toner Output7 V pk-pk (square wave), two warble rates
Battery Life1 x 9V. Alkaline recommended. Will last 6 months with typical use.
HumidityOperating: Up to 90% Storage: Up to 95%
Operating Temperature32°F to 122°F (0°C to 50°C) LCD, -29°F to 140°F (-34°C to 60°C)
Storage Temperature-58°F to 167°F (-50°C to 75°C)

Documents and Downloads
