Tempo Communications TV220EX | CableScout Time Domain Reflectometer...
Description
Description

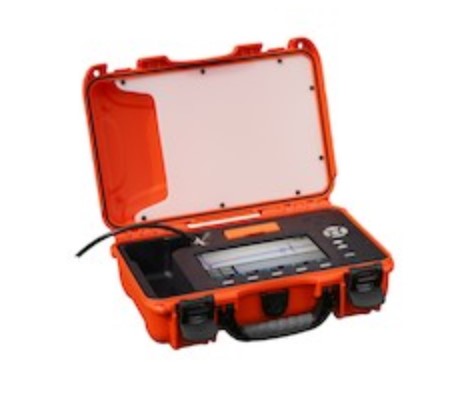

The TV220EX is an advanced TDR targeted at cable TV diagnostic technicians working in the latest “HFC” (hybrid fiber coax) networks. The TV220EX places the TV220E into a hardshell case and features the same sleek design and modern user interface with a full-color touchscreen and higher resolution for easy and accurate testing. The TDR engine offers lower noise and higher bandwidth tracing allowing you to see subtle faults on the cable missed by other TDRs. The range is extended through greater data capture plus the inclusion of longer “digital” pulses and the TestWizard with automatic event detector helps speed up common fault finding.
The multi-touch features of the touchscreen make routine tasks simpler and faster with pinch-to-zoom etc., while TV220E retains push buttons for straightforward control when working in the field. Sharing results is easy; you can take quick screenshots to send by mobile device or transfer saved results via USB drive.
Tempo Communications - TV220EX - Features
- TestWizard automatic event detection and fault analysis with configurable thresholds
- Advanced analysis modes: Test, Intermittent Fault Mode, Saved Trace, Test vs. Saved, Test vs. Saved & Difference
- Modern UI for rapid, intuitive testing
- 7” full-color, bright backlit, touchscreen display
- Push-button controls allow for use with gloves and in dirty environments
- Compact, lightweight yet rugged design
- Ruggedized and water-resistant case with shoulder strap
- Self-contained with sufficient storage inside the case for your accessories
- 12V AC-DC adaptor (universal)
- 12V “vehicle” lead
- 6ft, 2m RG6 quick-connect patch cord
- F – F coupler
- F – BNC coupler
- BNC to alligator clips adaptor
- Quick start guide (full help is “online” on the unit)
Specifications
Specifications
Tempo Communications - TV220EX - Specifications
| Maximum Range: | 5.58 km (Vp=0.93) |
|---|---|
| Basic Accuracy: | +/- 0.01% +/- 300ps |
| Horizontal Resolution (ns): | 0.05 to 20 ns (varies with range) |
| Display Resolution: | 1024 x 600 full color capacitive touchscreen (up to 800 nits bright backlight) |
| Push-button User Interface: | 13 mechanical keys, operable with gloves |
| Input Protection: | 400 V peak |
| Output Pulse Amplitude: | 4V to 6V |
| Output Impedance: | 75 Ohms |
| Pulse Widths: | 2, 5, 25, 125, 250, 500 ns. |
| Pulse Shapes: | Raised Cosine (2, 5, 25 ns), Digital (125, 250, 500 ns) |
| Velocity Factor (Vp): | Range 0.300 to 1.000 (numeric factor, %, metres per microsecond or feet per microsecond) |
| Connection: | F-connector with replaceable coupler |
| Test Modes: | Standard Test; Intermittent Fault Detection; Test vs. Saved, Test vs. Saved and Difference |
| Report Storage: | >100 traces |
| Report Writing Application: | Tempo Report Writer for PC (Android and iOS in development) |
| Size: | 32 x 23 x 11 cm (12.6 x 9 x 4.3 in) |
| Weight: | 2109g, (4.6 lbs) Excluding Accessories |
| Battery: | Four cell, Lithium-ion, 60Wh |
| Battery Run Time: | >8 hours at typical backlight brightness |
