Thomas & Betts 10H | Split-Bolt Connector, 1/0 AWG Stranded, 4 ...
Regular price
$37.48
Unit price
Brand: Thomas & Betts
|
SKU:
867314
Regular price
$37.48
Unit price
Description
Description

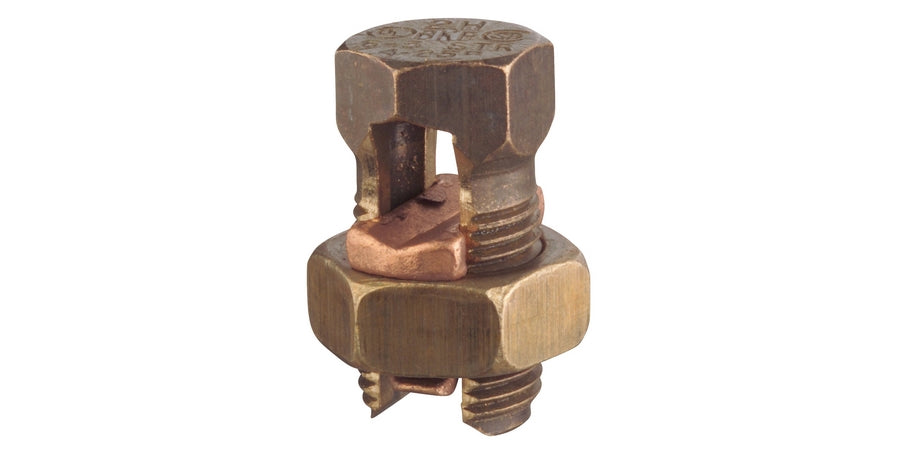

Thomas & Betts 10H | Split-Bolt Connector, 1/0 AWG Stranded, 4 AWG Solid
Type H - high strength split-bolt connector, conductor range for equal main and tap 1/0 Str-4 sol, conductor range for min tap with one max main 14 sol
Specifications
Specifications
Thomas & Betts - 10H - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Mechanical Grounding and Bonding
- Mechanical Split Bolts
Thomas & Betts - 10H - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 10H |
| Item Description | Split-Bolt Connector, 1/0 AWG Stranded, 4 AWG Solid Type H - high strength split-bolt connector, conductor range for equal main and tap 1/0 Str-4 sol, conductor range for min tap with one max main 14 sol |
| UPC | 78378620014 |
| Color | Metallic |
| Conductor Size | 4 Awg |
| Conductor Type | Solid |
| Hex Size | 15/16 In. |
| Installation | Hex Split Bolt And Hex Nut |
| Length | 1-19/32 In. |
| Material Finish | Corrosion-Resistant |
| Material | Bronze Alloy |
| Product Type | Split Bolt |
| Run Acsr Max | Not Applicable |
| Run Acsr Min | Not Applicable |
| Run Awg Max | 1/0 Str. |
| Run Awg Min | 4 Sol. |
| Special Rating | Ul E9809 |
| Tap Acsr Max | Not Applicable |
| Tap Acsr Min | Not Applicable |
| Tap Awg Max | 1/0 Str. |
| Tap Awg Min | 4 Sol. |
| Type | Connector, Split Bolt |
| Approval | UL, CSA |
