Brand: Thomas & Betts
|
SKU:
632557

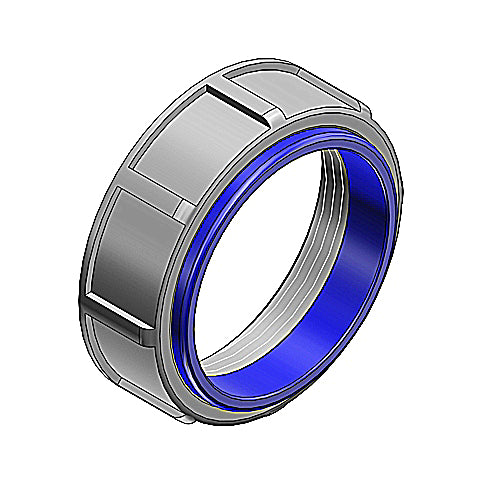

Thomas & Betts 1226 | 1-1/2" Insulated Bushing, Malleable Iron, Blue Insulating Liner in Throat for Use with Rigid/IMC Conduit
Regular price
$16.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 1226 | 1-1/2" Insulated Bushing, Malleable ...
Regular price
$16.18
Unit price
Brand: Thomas & Betts
|
SKU:
632557
Regular price
$16.18
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts 1226 | 1-1/2" Insulated Bushing, Malleable Iron, Blue Insulating Liner in Throat for Use with Rigid/IMC Conduit
1-1/2 Inch Insulated Bushing, Malleable Iron, Blue Insulating Liner In Throat for Use with Rigid/IMC Conduit
Specifications
Specifications
Thomas and Betts - 1226 - North American Specifications
| UNSPSC | 39121312 Electrical bushing |
|---|---|
| IGCC | 4442 Electrical bushing |
| Brand Name | T&B Rigid Fittings |
| Type | Bushings |
| Special Features | T&B Insulated Fittings Reduce Wire Pulling Effort by As Much As 50 Percent |
| Application | For Use with Rigid/IMC Conduit |
| Standard | UL E23018, CSA |
| Size | 1-1/2 Inch |
| Material | Steel |
Thomas and Betts - 1226 - European Specifications
| ETIM | EC001181 Sealing ring |
|---|---|
| Model | Other |
| Outer diameter | 65.08mm |
| Material | Metal |
| Fitting for thread size NPT | 1.50 |
Thomas and Betts - 1226 - Package Information
| Inner Quantity | 5 |
|---|---|
| Inner Dimensions (inches) | 3.5x3x3 |
| Outer Quantity | 20 |
| Outer Dimensions (inches) | 8.9x6.9x5.1 |
| Weight Uom | 9.5 lbs. per 100 |
