Thomas & Betts 1229 | Insulated M.I. Bushing
Regular price
$57.60
Unit price
Brand: Thomas & Betts
|
SKU:
632559
Regular price
$57.60
Unit price
Description
Description

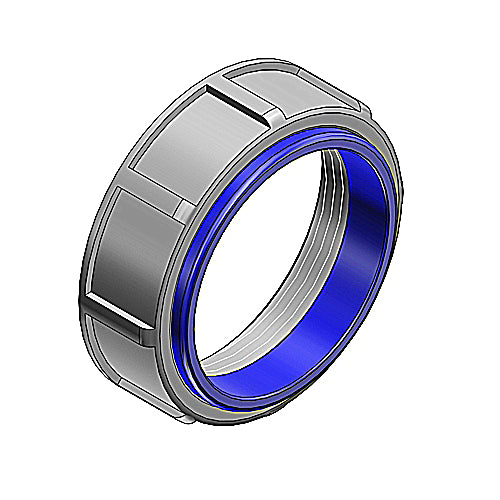

Thomas and Betts 1229 | Insulated M.I. Bushing
3 Inch Insulated Bushing, Malleable Iron, Blue Insulating Liner In Throat for Use with Rigid/IMC Conduit
Specifications
Specifications
Thomas and Betts - 1229 - North American Specifications
| UNSPSC | 39121312 Electrical bushing |
|---|---|
| IGCC | 4442 Electrical bushing |
| Brand Name | T&B Rigid Fittings |
| Type | Bushings |
| Special Features | T&B Insulated Fittings Reduce Wire Pulling Effort by As Much As 50 Percent |
| Application | For Use with Rigid/IMC Conduit |
| Standard | UL E23018, CSA |
| Size | 3 Inch |
| Material | Malleable Iron |
Thomas and Betts - 1229 - European Specifications
| ETIM | EC001181 Sealing ring |
|---|---|
| Model | Other |
| Outer diameter | 97.63mm |
| Material | Metal |
| Fitting for thread size NPT | 3.00 |
Thomas and Betts - 1229 - Package Information
| Outer Quantity | 5 |
|---|---|
| Outer Dimensions (inches) | 6.7x5.8x5.4 |
| Weight Uom | 51.5 lbs. per 100 |
