Brand: Thomas & Betts
|
SKU:
632563

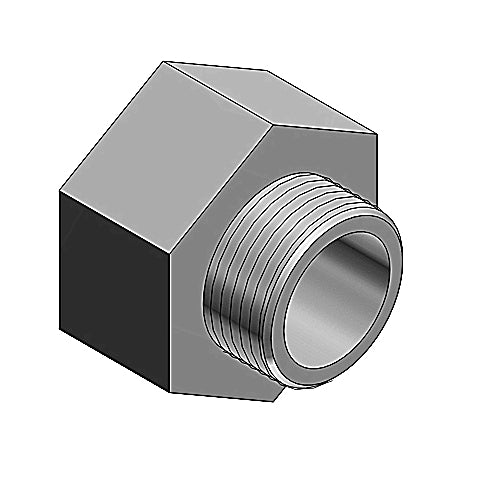

Thomas & Betts 1246 | 3/4 Inch to 1 Inch Male Enlarger - Malleable Iron
Regular price
$14.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 1246 | 3/4 Inch to 1 Inch Male Enlarger - Mallea...
Regular price
$14.86
Unit price
Brand: Thomas & Betts
|
SKU:
632563
Regular price
$14.86
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts 1246 | 3/4 Inch to 1 Inch Male Enlarger - Malleable Iron
3/4 Inch to 1 Inch Male Enlarger, Malleable Iron for Use with Rigid/IMC Conduit
Specifications
Specifications
Thomas and Betts - 1246 - North American Specifications
| UNSPSC | 39131708 Electrical conduit fitting body |
|---|---|
| IGCC | 5563 Electrical conduit fitting body |
| Brand Name | T&B Rigid Fittings |
| Type | Reducers & Enlargers |
| Special Features | Adapt an Outlet Hole to The Next Larger Size of Conduit. Rough Ends of Conduit Carefully Covered by Built-In Bushing. |
| Application | Suitable for Use In Hazardous Locations Where General Purpose Equipment is Specifically Permitted by The NEC; Class I, Div. 2; Class II, Div. 1 & 2, NEC 501-4(B); 502-4(A)(B); 503-3(A)(B). |
| Standard | UL E23018, CSA |
| Hub Size | 3/4 to 1 in |
| Material | Malleable Iron |
Thomas and Betts - 1246 - European Specifications
| ETIM | EC000938 Enlargement/reducing ring |
|---|---|
| Thread type inner thread | NPT |
| Thread size inner thread (inch) | 1 inch |
| Thread type outer thread | NPT |
| Thread size outer thread (inch) | 3/4 inch |
| Material | Other |
| Nickel-plated | N |
Thomas and Betts - 1246 - Package Information
| Inner Quantity | 25 |
|---|---|
| Inner Dimensions (inches) | 6x4.5x4 |
| Outer Quantity | 50 |
| Outer Dimensions (inches) | 8.9x5.7x7 |
| Weight Uom | 25.31 lbs. per 100 |
