Brand: Thomas & Betts
|
SKU:
194383-PK
Thomas & Betts 14RBC-8 | Ring Terminal, Vinyl Insulated, 1.13 in. Length
Regular price
$143.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 14RBC-8 | Ring Terminal, Vinyl Insulated, 1.13 i...
Regular price
$143.67
Unit price
Brand: Thomas & Betts
|
SKU:
194383-PK
Regular price
$143.67
Unit price
Shipping calculated at checkout.
Description
Description

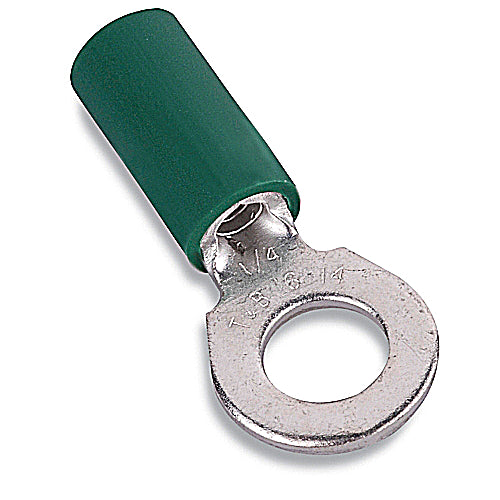

Thomas and Betts 14RBC-8 | Ring Terminal, Vinyl Insulated, 1.13 in. Length

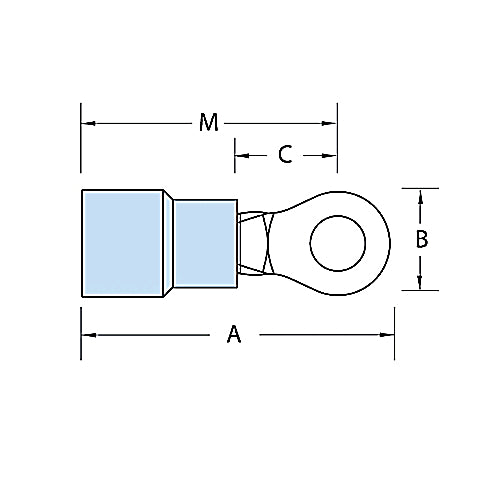

Vinyl-Insulated Heavy-Duty Ring Terminal, Length 1.13 Inches, Width 0.39 Inch, Maximum Insulation 0.21, Bolt Size 8, Wire Range 16-14 Heavy Duty AWG, Color Green, Copper, Tin Plated
Thomas and Betts - 14RBC-8 - Features
- Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
- Application Tools: WT2000, ERG4001
Specifications
Specifications
Thomas and Betts - 14RBC-8 - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Type | Vinyl Insulated Heavy-Duty Ring Terminal |
| Special Features | Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams. |
| Standard | UL E9809 |
| Wire Size | 16-14 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Color | Green |
Thomas and Betts - 14RBC-8 - European Specifications
| ETIM | EC001052 Solderless copper terminals for copper conductors |
|---|---|
| Flange shape | Ring shape |
| Insulation | PVC |
| Colour insulation | Other |
| Reel packaging | N |
| Sleeve form | Short |
| AWG-range | 16-14 |
| Material | Copper |
| Surface protection | Tinned |
Thomas and Betts - 14RBC-8 - Package Information
| Inner Quantity | 50 |
|---|---|
| Outer Quantity | 250 |
| Outer Dimensions (inches) | 6.3x4.69x3.3 |
| Weight Uom | 6.25 lbs. per 1000 |
