Brand: Thomas & Betts
|
SKU:
637745

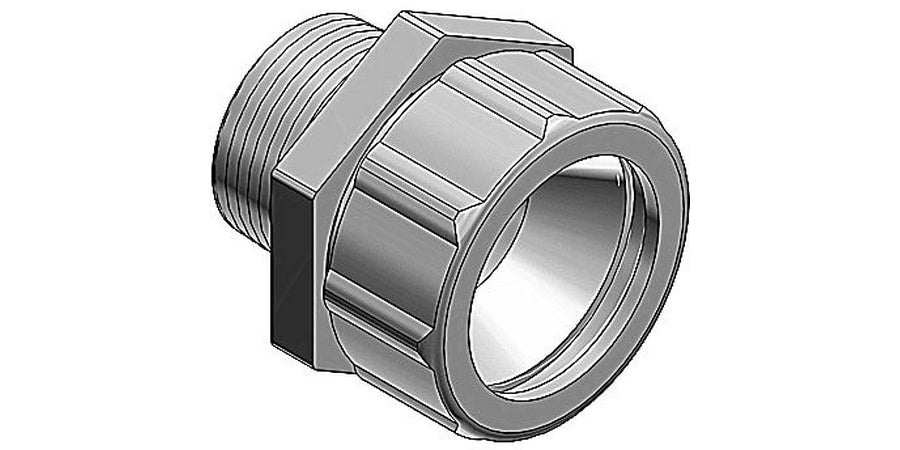

Thomas & Betts 2517 | Cord Connector, Steel Body, 1/4 in., 1/8 in., 1/4 in., Straight, NPT Thread
Regular price
$21.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 2517 | Cord Connector, Steel Body, 1/4 in., 1/8 ...
Regular price
$21.98
Unit price
Brand: Thomas & Betts
|
SKU:
637745
Regular price
$21.98
Unit price
Shipping calculated at checkout.
Description
Description
Thomas & Betts 2517 | Cord Connector, Steel Body, 1/4 in., 1/8 in., 1/4 in., Straight, NPT Thread
The T&B steel liquid-tight strain relief cord connector is suited for most general control and power cable applications. This Series features sturdy neoprene bushings and tapered hub threads.
Specifications
Specifications
Thomas & Betts - 2517 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Cord Grips
Thomas & Betts - 2517 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 2517 |
| Item Description | Cord Connector, Steel Body, 1/4 in., 1/8 in., 1/4 in., Straight, NPT Thread The T&B steel liquid-tight strain relief cord connector is suited for most general control and power cable applications. This Series features sturdy neoprene bushings and tapered hub threads. |
| UPC | 78621002517 |
| Body Material | Steel |
| Bore Diameter | 2-3/8 In. |
| Cable Outside Diameter Maximum | 1/4 In. |
| Cable Outside Diameter Minimum | 1/8 In. |
| Cable Range | 1/8 To 1/4 In. |
| Color | Metallic |
| Connection Rating | Liquid-Tight |
| Connection Type | Straight Male |
| Connector Angle | Straight |
| Dimensions | Lxdia: 17/16 X 13/64 In. |
| Hub Size | 1/4 In. |
| Key Type | Standard |
| Keyway Size | 0.63 X 0.50 |
| Length | 1.78 In. |
| Od - Min-Max Average | 0.20 In |
| Product Type | Liquid-Tight Strain Relief Cord Connector |
| Size | 2517 |
| Special Rating | Liquid-Tight, Ip66, Nema 4 |
| Thread Type | Npt |
| Trade Size | 1/4 In. |
| Type | Bushing |
| Approval | UL, CSA |
