Brand: Thomas & Betts
|
SKU:
127685

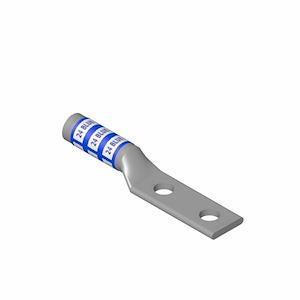

Thomas & Betts 256-30695-1225 | Compression Lug, Long Barrel, Blue Color Code, Copper Conductor, 6 AWG, 24, Copper, 2 Hole
Regular price
$29.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 256-30695-1225 | Compression Lug, Long Barrel, B...
Regular price
$29.73
Unit price
Brand: Thomas & Betts
|
SKU:
127685
Regular price
$29.73
Unit price
Shipping calculated at checkout.
Description
Description
Thomas & Betts 256-30695-1225 | Compression Lug, Long Barrel, Blue Color Code, Copper Conductor, 6 AWG, 24, Copper, 2 Hole
Made from high conductivity copper for terminating copper conductor with low resistance crimped connections.
Specifications
Specifications
Thomas & Betts - 256-30695-1225 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Compression Grounding and Bonding
- Compression Lugs
Thomas & Betts - 256-30695-1225 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 256-30695-1225 |
| Item Description | Compression Lug, Long Barrel, Blue Color Code, Copper Conductor, 6 AWG, 24, Copper, 2 Hole Made from high conductivity copper for terminating copper conductor with low resistance crimped connections. |
| UPC | 78621007250 |
| Barrel | Standard |
| Barrel Type | Long |
| Color Code | Blue |
| Conductor Material | Copper |
| Conductor Size - Code | 6 Awg |
| Conductor Size - Flex | 6 Flex 61/24 Str |
| Conductor Size | 6 Awg |
| Die Index | 24 |
| Finish | Tin-Plated |
| Gauge | 6 Awg |
| Holes | 2 Hole |
| Hole Size | 1/4 In. |
| Lug L X Tongue W | 2.43 X 0.43 In. |
| Material | Electro Tin-Plated Copper |
| Number Of Holes | 2 |
| Overall Length | 2.43 In. |
| Overall Width | 0.43 In. |
| Product Type | Compression Lug |
| Special Feature | Blind End |
| Stud Hole Spacing | 0.75 In. |
| Stud Size | 1/4 In. |
| Type | Flex Compression |
| Tongue Angle | Straight |
| Tongue Length | 1.43 In. |
| Tongue Thickness | 0.07 In. |
| Tongue Width | 0.43 In. |
| Voltage Rating | 35 Kv |
| Approval | UL, CSA |
