Brand: Thomas & Betts | SKU: 825864

Thomas & Betts 256-30695-1247 | Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 4/0 AWG, 1/4 in Bolt Size, 5/8 in Hole Spacing

$32.32

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Thomas and Betts 256-30695-1247 | Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 4/0 AWG, 1/4 in Bolt Size, 5/8 in Hole Spacing

Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 4/0 AWG, 1/4 Inch Bolt Size, 5/8 Inch Hole Spacing, Tin Plated, Die Color Code Purple, Die Code 54

Specifications

Thomas and Betts - 256-30695-1247 - North American Specifications

UNSPSC	39121405 Cable or wire lug
IGCC	4532 Cable or wire lug
Brand Name	Color Keyed / Blackburn
Type	Standard Barrel
Standard	UL E9809
Cable Size	4/0 AWG
Stud Size	1/4 in
Number Of Holes	2
Voltage Rating	35 kV
Insulation	None
Material	Copper
Color	Purple

Thomas and Betts - 256-30695-1247 - European Specifications

ETIM	EC001051 Tube cable lug for copper conductors
Connecting angle	Straight
Slender flange model	N
Insulated	N
With sight-hole	Y
Material	Copper
Surface protection	Tinned
Number of fixing holes	2

Thomas and Betts - 256-30695-1247 - Package Information

Inner Quantity	10
Inner Dimensions (inches)	3.5x3x3
Outer Quantity	100
Outer Dimensions (inches)	16.4x7.5x3.5
Weight Uom	12.5 lbs. per 100

Documents and Downloads

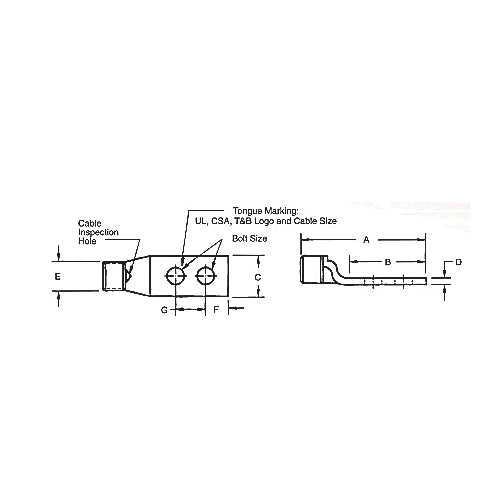

Thomas and Betts 256-30695-1247 Technical Drawing/Data Sheet US
