Thomas & Betts 256-30695-252 | 2-Hole Standard Barrel Lug With ...
Regular price
$23.26
Unit price
Brand: Thomas & Betts
|
SKU:
329819
Regular price
$23.26
Unit price
Description
Description

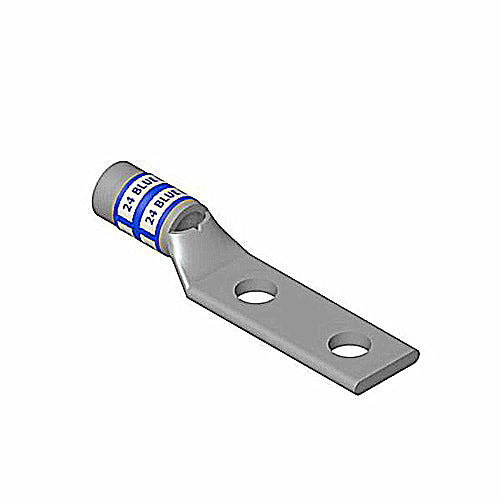

Thomas and Betts 256-30695-252 | 2-Hole Standard Barrel Lug With Peep Hole

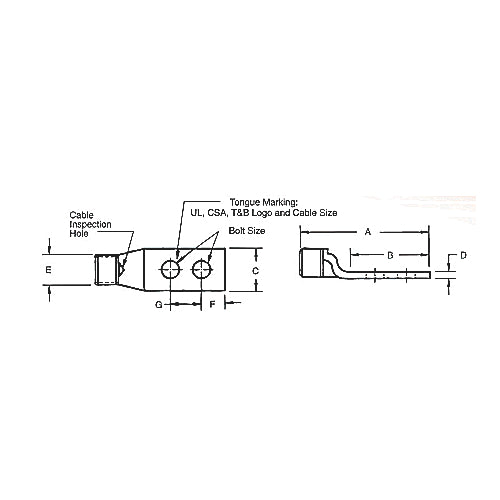

Copper Two-Hole Lug, Standard Barrel, Peep Hole, Tongue Length 1.63 Inches, Max 35kV, Wire Size 6 AWG, 1/4 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Color Code Blue, Die Code 24
Specifications
Specifications
Thomas and Betts - 256-30695-252 - North American Specifications
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| IGCC | 4532 Cable or wire lug |
| Brand Name | Color Keyed / Blackburn |
| Type | Standard Barrel |
| Standard | UL E9809 |
| Cable Size | 6 AWG |
| Stud Size | 1/4 in |
| Number Of Holes | 2 |
| Voltage Rating | 35 kV |
| Insulation | None |
| Material | Copper |
| Color | Blue |
Thomas and Betts - 256-30695-252 - European Specifications
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Connecting angle | Straight |
| Slender flange model | N |
| Insulated | N |
| With sight-hole | Y |
| Material | Copper |
| Surface protection | Tinned |
| Number of fixing holes | 2 |
Thomas and Betts - 256-30695-252 - Package Information
| Outer Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 5.5x3.8x2.8 |
| Weight Uom | 2 lbs. per 100 |
