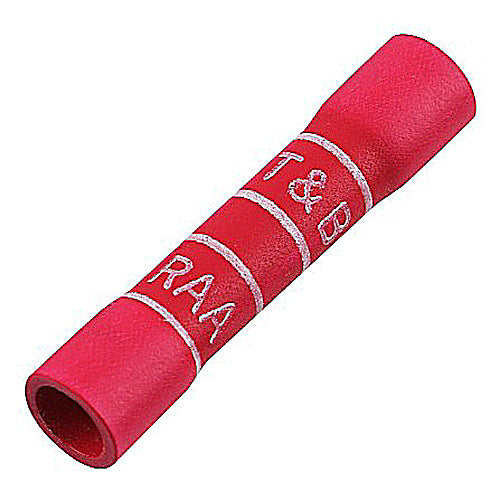

Thomas & Betts 2RA18X | Sta-Kon Vinyl-Insulated Butt Splice 1PK...
Regular price
$153.85
Unit price
Brand: Thomas & Betts
|
SKU:
201250-PK
Regular price
$153.85
Unit price
Description
Description
Thomas and Betts 2RA18X | Sta-Kon Vinyl-Insulated Butt Splice 1PK-100 EA
Expanded Vinyl-Insulated Butt Splice, Length 1.13 Inches, Width .25 Inches, Maximum Insulation Diameter .170, Wire Range 22-18 AWG, Color Red, Copper, Tin Plated
Thomas and Betts - 2RA18X - Features
- In butt splices, the wires are butted together and crimped at each end of the splice.
- These splices are color-coded according to wire size.
- Application Tools: WT145C, WT2000, WT112M, ERG4001
- Alternate Package Qty: RAA217170
Specifications
Specifications
Thomas and Betts - 2RA18X - North American Specifications
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| IGCC | 4669 Wire or cable compression splice |
| Brand Name | Sta-Kon |
| Type | Vinyl Insulated Butt Splice |
| Special Features | In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size. |
| Standard | UL E9809 |
| Material | Copper |
| Finish | Electro -Tin Plated |
| Color | Red |
| Voltage Rating | 600 V |
| Temperature Rating | 105 C |
Thomas and Betts - 2RA18X - European Specifications
| ETIM | EC001059 Crimp splices for copper conductor |
|---|---|
| AWG-range | 22-18 |
| Material | Copper |
| Surface protection | Tinned |
| Insulation | PVC |
| Colour insulation | Red |
Thomas and Betts - 2RA18X - Package Information
| Inner Quantity | 100 |
|---|---|
| Inner Dimensions (inches) | 7x2.7x3.7 |
| Outer Quantity | 500 |
| Outer Dimensions (inches) | 12x10x8 |
| Weight Uom | 3.75 lbs. per 1000 |
