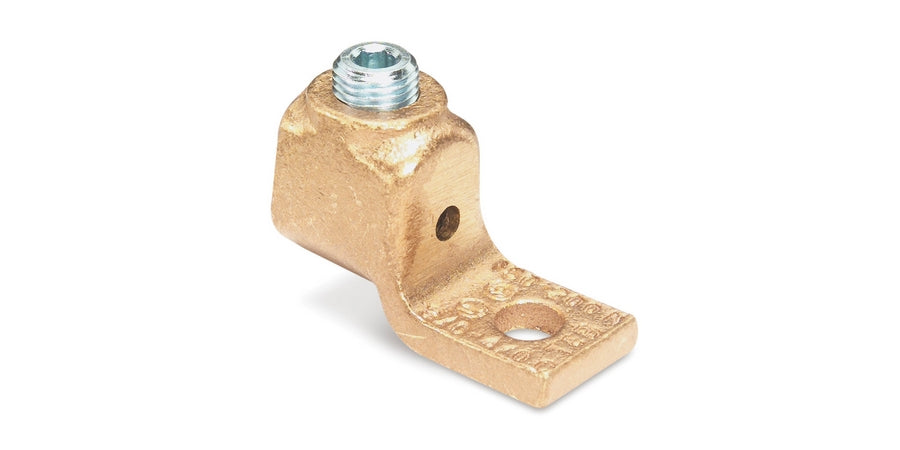

Thomas & Betts 31003 | Locktite Connector, Copper, 14AWG
Regular price
$46.53
Unit price
Brand: Thomas & Betts
|
SKU:
861267
Regular price
$46.53
Unit price
Description
Description
Thomas & Betts 31003 | Locktite Connector, Copper, 14AWG
Locktite copper one-hole lug for conductor range #14 - #8 AWG or 4 - 14 NAVY length 1-1/8 inch, width 1/2 inch, pad thickness 1/8 inch pad length 9/16 inch bolt size 1/4 inch, height 15/32 inch
Specifications
Specifications
Thomas & Betts - 31003 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Mechanical Grounding and Bonding
- Mechanical Lugs
Thomas & Betts - 31003 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 31003 |
| Item Description | Locktite Connector, Copper, 14AWG Locktite copper one-hole lug for conductor range #14 - #8 AWG or 4 - 14 NAVY length 1-1/8 inch, width 1/2 inch, pad thickness 1/8 inch pad length 9/16 inch bolt size 1/4 inch, height 15/32 inch |
| UPC | 78621031003 |
| Awg Max | 8 |
| Awg Min | 14 |
| Bolt Size | 1/4 In. |
| Conductor Count | 1 |
| Conductor Entry | Standard, Saddle |
| Conductor Size | 14 Awg |
| Height | 15/32 In. |
| Inspection Hole | No |
| Length | 1-1/8 In. |
| Material | Copper |
| Number Of Holes | 1 |
| Overall Length | 1-1/8 In. |
| Pad Length | 9/16 In. |
| Pad Thickness | 1/8 In. |
| Product Type | Locktite Connectors |
| Screw Type | Filister Head Screw |
| Screw/Stud Size | 1/4 |
| Special Rating | Ul E9809 |
| Stud Holes | 1 |
| Tongue Type | Straight |
| Type | Mechanical Terminal |
| Voltage | 600 Vac |
| Width | 1/2 In. |
| Approval | UL, CSA |
