Thomas & Betts 32211 | 2 Hole Lug 2/0 - 4/0 AWG 1/2" Stud ...
Regular price
$150.04
Unit price
Brand: Thomas & Betts
|
SKU:
667477
Regular price
$150.04
Unit price
Description
Description

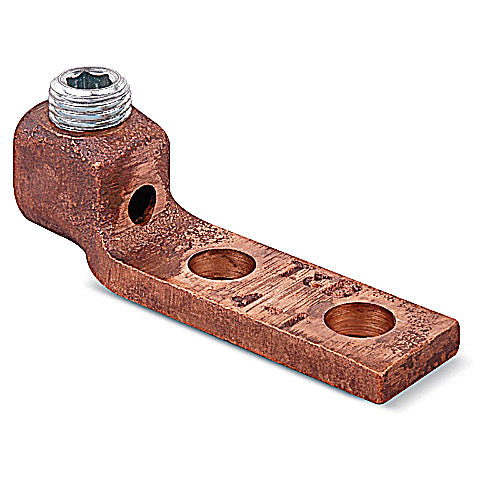

Thomas and Betts 32211 | 2 Hole Lug 2/0 - 4/0 AWG 1/2" Stud 1 3/4" Copper
Locktite Copper Two-Hole Nema Drilled Lug for Conductor Range 2/0 to 4/0
Thomas and Betts - 32211 - Features
- Easy installation.
- High conductivity.
- Wide cable range.
- Furnished with bolt holes and spacings to fit equipment with NEMA-type connector mounting pads.
Specifications
Specifications
Thomas and Betts - 32211 - North American Specifications
| UNSPSC | 39121408 Mechanical connectors |
|---|---|
| IGCC | 4541 Mechanical connectors |
| Brand Name | Blackburn |
| Type | Locktite Connectors |
| Special Features | Easy installation. High conductivity. Wide cable range. |
| Standard | UL E9809 |
| Material | Copper |
| Conductor Range (Main/Primary) | 2/0 to 4/0 |
Thomas and Betts - 32211 - Package Information
| Inner Quantity | 5 |
|---|---|
| Inner Dimensions (inches) | 4x4x3 |
| Outer Quantity | 25 |
| Outer Dimensions (inches) | 21.75x4.5x3.75 |
| Weight Uom | 50 lbs. per 100 |
