Thomas & Betts 40H | Split Bolt Connector, Bronze Alloy, Strand...
Regular price
$71.08
Unit price
Brand: Thomas & Betts
|
SKU:
865238
Regular price
$71.08
Unit price
Description
Description

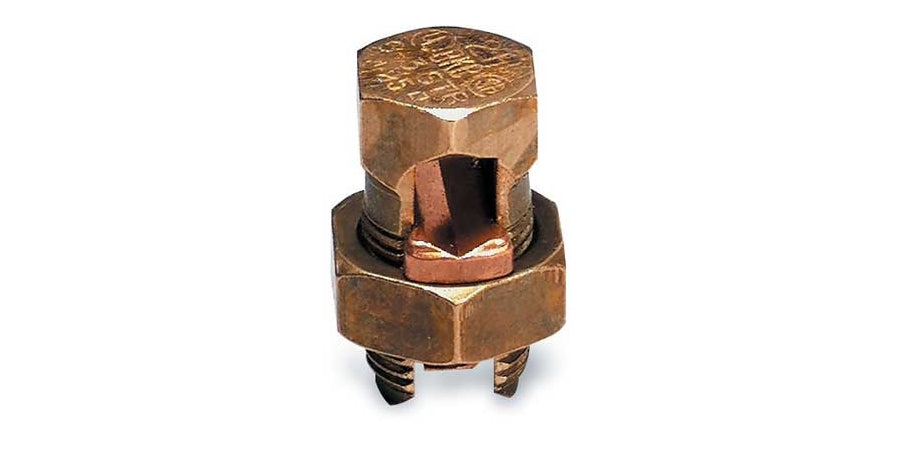

Thomas & Betts 40H | Split Bolt Connector, Bronze Alloy, Stranded, 250 kcmil
Type H - high strength split-bolt connector, conductor range for equal main and tap 250 kcmil-1 str, conductor range for min tap with one max main 8 sol
Specifications
Specifications
Thomas & Betts - 40H - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Mechanical Grounding and Bonding
- Mechanical Split Bolts
Thomas & Betts - 40H - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 40H |
| Item Description | Split Bolt Connector, Bronze Alloy, Stranded, 250 kcmil Type H - high strength split-bolt connector, conductor range for equal main and tap 250 kcmil-1 str, conductor range for min tap with one max main 8 sol |
| UPC | 78378620017 |
| Color | Metallic |
| Conductor Material | Copper-To-Copper Connections |
| Conductor Size | 250 Kcmil |
| Conductor Type | Stranded |
| Hex Size | 1-5/6 In. |
| Installation | Hex Split Bolt And Hex Nut |
| Length | 2-5/32 In. |
| Material Finish | Corrosion-Resistant |
| Material | Bronze Alloy |
| Product Type | Split Bolt Connector |
| Run Acsr Max | Not Applicable |
| Run Acsr Min | Not Applicable |
| Run Awg Max | 250 Kcmil |
| Run Awg Min | 1 Str. |
| Special Rating | Ul E9809 |
| Tap Acsr Max | Not Applicable |
| Tap Acsr Min | Not Applicable |
| Tap Awg Max | 250 Kcmil |
| Tap Awg Min | 1 Str. |
| Type | Connector, Split Bolt |
| Approval | UL, CSA |
