Thomas & Betts 5245 | Connector, 1-1/4 in., Liquid Tight, Non I...
Description
Description

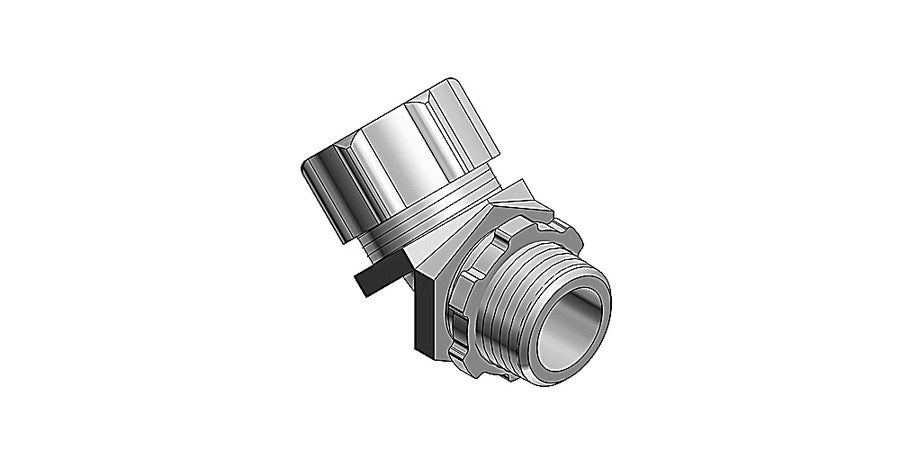

Liquidtight Conduit Fitting, 45 degree 1-1/4 in. , Non-Insulated Malleable Iron. NPT, ISO Metric and PG thread types. Coordinated performance with T&B Liquidtight Systems Flexible Metallic Conduits. Ingress protection ratings aligned with industrial enclosures. Safe Edge ground cones provide superior bonding. Double Bevel Sealing Ring eases assembly and insures seal tight performance. Heat curled insulators protect wire sheathing from damage. Revolver grounding version with GR part number suffix.
Specifications
Specifications
Thomas & Betts - 5245 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connector Hardware
- Electrical Connector Strain Relief
Thomas & Betts - 5245 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 5245 |
| Application | Used Where Flexible Metal Raceway Is Installed In Outdoor Or Indoor Locations Where Exposed To Continuous Or Intermittent Moisture. |
| Connection Angle | 45° |
| Connection Type | Liquid Tight; Non Insulated |
| Connector Angle | 45 Degree |
| For Conduit Type | Flexible Metallic |
| Includes Pull Tape | No |
| Insulation | Non-Insulated |
| Material | Malleable Iron |
| Product Type | Liquid-Tight Connector |
| Special Rating | Culus; Csa; Ce Certified |
| Thread Size | 1-1/4 In. |
| Thread Type | Npt |
| Trade Size | 1-1/4 In. |
