Brand: Thomas & Betts
|
SKU:
843182

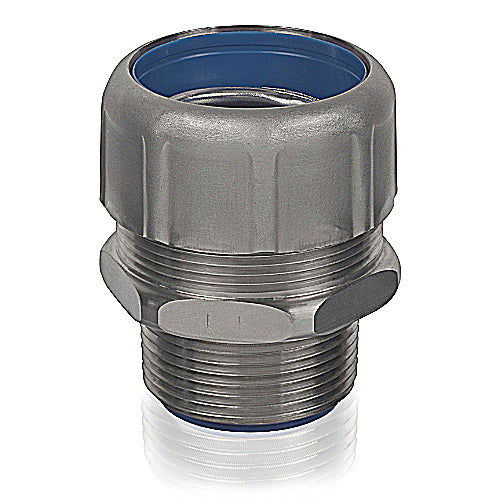

Thomas & Betts 5332SST6 | Threaded, Liquidtight Connector and Coupling, Stainless Steel, Insulated Throat, 1/2 in.
Regular price
$270.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 5332SST6 | Threaded, Liquidtight Connector and C...
Regular price
$270.82
Unit price
Brand: Thomas & Betts
|
SKU:
843182
Regular price
$270.82
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts 5332SST6 | Threaded, Liquidtight Connector and Coupling, Stainless Steel, Insulated Throat, 1/2 in.
1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 1.74 Inches/44.20mm, Width 1.33 Inches/33.78mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone
Thomas and Betts - 5332SST6 - Features
- NEMA Ratings: 3, 3R, 4, 4X
- CSA and UL Listed
- Ideal for Food and Beverage, Pharmaceutical, Petrochemical, Wastewater Processing, Salt Water and Other Corrosive Environments
Specifications
Specifications
Thomas and Betts - 5332SST6 - North American Specifications
| UNSPSC | 39121420 Liquid tight connectors |
|---|---|
| IGCC | 4585 Liquid tight connectors |
| Brand Name | T&B Liquidtight Fittings |
| Type | Straight Fitting for Flexible Metallic Conduit |
| Special Features | Stronger and More UV-resistant than Nonmetallic Fittings |
| Application | Connects Flexible Metallic Liquidtight Conduit to a Box or Enclosure |
| Standard | UL E23018, CSA |
| Size | 1/2 Inch |
| Material | 316 Stainless Steel with Duraplated Ground Cone |
| Finish | None |
| Color | Metallic |
| NEMA Rating | 3, 3R, 4, 4X |
| Insulation | Y |
Thomas and Betts - 5332SST6 - European Specifications
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Nominal diameter | 20mm |
| Nominal size in inch | 1/2 inch |
| Model | Straight |
| Revolving thread | N |
| Construction type | External thread |
| Connection type screw connection to housing | Thread |
| One-piece | N |
| Material housing | Stainless steel |
| Surface protection | Untreated |
| Total length | 44.20mm |
| Total height | 33.78mm |
Thomas and Betts - 5332SST6 - Package Information
| Inner Quantity | 25 |
|---|---|
| Inner Dimensions (inches) | 6x4.5x4 |
| Outer Quantity | 100 |
| Outer Dimensions (inches) | 9.5x8.62x6.37 |
| Weight Uom | 19 lbs. per 100 |
