Brand: Thomas & Betts
|
SKU:
660885

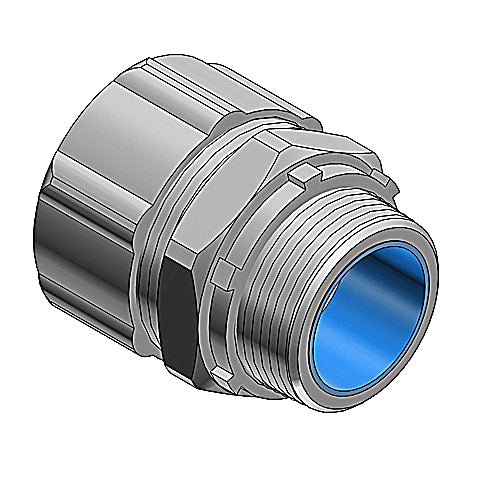

Thomas & Betts 5334-TB | 1" Straight Steel Insulated Liquidtight Connector
Regular price
$29.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 5334-TB | 1" Straight Steel Insulated Liqui...
Regular price
$29.73
Unit price
Brand: Thomas & Betts
|
SKU:
660885
Regular price
$29.73
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts 5334-TB | 1" Straight Steel Insulated Liquidtight Connector
1 Inch Straight Steel Insulated Liquidtight Connector
Thomas and Betts - 5334-TB - Features
- Ability to install quickly with low torque effort
- To positively bond conduit to box or enclosure.
Specifications
Specifications
Thomas and Betts - 5334-TB - North American Specifications
| UNSPSC | 39121420 Liquid tight connectors |
|---|---|
| IGCC | 4585 Liquid tight connectors |
| Brand Name | T&B Liquidtight Fittings |
| Type | Connectors-Straight |
| Application | Used where flexible metal raceway is installed in outdoor or indoor locations where exposed to continuous or intermittent moisture. |
| Standard | UL E23018, CSA |
| Size | 1 Inch |
| Material | Steel |
| Finish | Electro Zinc Plated/Chromate Coating |
Thomas and Betts - 5334-TB - European Specifications
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Nominal size in inch | 1 inch |
| Model | Straight |
| Revolving thread | N |
| Construction type | External thread |
| Connection type screw connection to housing | Thread |
| Thread type | NPT |
| Thread connection size | Other |
| One-piece | N |
| Material housing | Steel |
| Approved in combination with protective conduit CSA | Y |
| Approved in combination with protective conduit UL | Y |
Thomas and Betts - 5334-TB - Package Information
| Inner Quantity | 10 |
|---|---|
| Inner Dimensions (inches) | 6x5x4 |
| Outer Quantity | 50 |
| Outer Dimensions (inches) | 22.06x5.31x6.31 |
| Weight Uom | 37.5 lbs. per 100 |
