Brand: Thomas & Betts | SKU: 826224

Thomas & Betts 54131UB | Copper One-Hole Lug, 90 Degree Bend Standard Barrel, Peep Hole, Max 35kV, Wire Size 8 AWG, 5/16 in Bolt Size, Tin Plated, Die Code 21, Red

$23.26

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Thomas and Betts 54131UB | Copper One-Hole Lug, 90 Degree Bend Standard Barrel, Peep Hole, Max 35kV, Wire Size 8 AWG, 5/16 in Bolt Size, Tin Plated, Die Code 21, Red

Copper One-Hole Lug, 90 Degree Bend Standard Barrel, Peep Hole, Max 35kV, Wire Size 8 AWG, 5/16 Inch Bolt Size, Tin Plated, Die Code 21, Die Color Code Red

Specifications

Thomas and Betts - 54131UB - North American Specifications

UNSPSC	39121405 Cable or wire lug
IGCC	4532 Cable or wire lug
Brand Name	Color Keyed / Blackburn
Type	Standard Barrel 90 Degree Bend
Standard	UL E9809
Cable Size	8 AWG
Stud Size	5/16 in
Number Of Holes	1
Voltage Rating	35 kV
Insulation	None
Material	Copper
Color	Red

Thomas and Betts - 54131UB - European Specifications

ETIM	EC001051 Tube cable lug for copper conductors
Connecting angle	90°
Slender flange model	N
Insulated	N
With sight-hole	Y
Material	Copper
Surface protection	Tinned
Number of fixing holes	1

Thomas and Betts - 54131UB - Package Information

Outer Quantity	500
Outer Dimensions (inches)	12.45x6.25x3.6
Weight Uom	1 lbs. per 100

Documents and Downloads

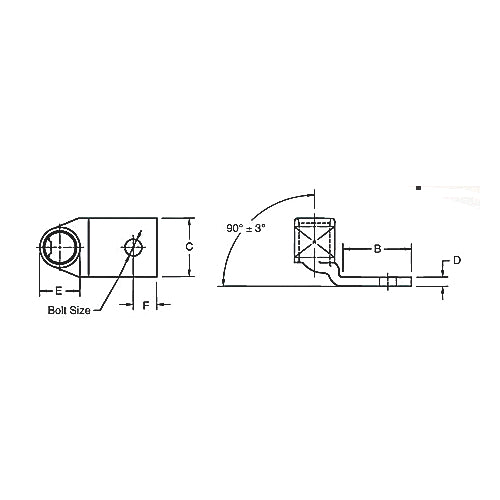

Thomas and Betts 54131UB Technical Drawing/Data Sheet US
