Brand: Thomas & Betts
|
SKU:
696172

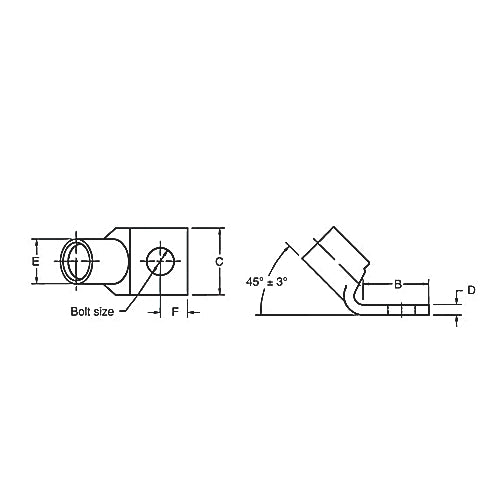

Thomas & Betts 54147UF | Color-Keyed, One-Hole Lug, Copper, Tin-Plated, 35kV, 45°, 1 AWG, 5/16 in. Stud
Regular price
$25.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 54147UF | Color-Keyed, One-Hole Lug, Copper, Tin...
Regular price
$25.85
Unit price
Brand: Thomas & Betts
|
SKU:
696172
Regular price
$25.85
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts 54147UF | Color-Keyed, One-Hole Lug, Copper, Tin-Plated, 35kV, 45°, 1 AWG, 5/16 in. Stud
Copper One-Hole Lug, 45 Degree Bend Standard Barrel, Peep Hole, Max 35kV, 1 AWG Wire, 5/16 Inch Bolt Size, Tin Plated, Die Code 37, Die Color Code Green
Specifications
Specifications
Thomas and Betts - 54147UF - North American Specifications
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| IGCC | 4532 Cable or wire lug |
| Brand Name | Color Keyed / Blackburn |
| Type | Standard Barrel 45 Degree Bend |
| Standard | UL E9809 |
| Cable Size | 1 AWG |
| Stud Size | 5/16 in |
| Number Of Holes | 1 |
| Voltage Rating | 35 kV |
| Insulation | None |
| Material | Copper |
| Color | Green |
Thomas and Betts - 54147UF - European Specifications
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Connecting angle | 45° |
| Slender flange model | N |
| Insulated | N |
| With sight-hole | Y |
| Material | Copper |
| Surface protection | Tinned |
| Number of fixing holes | 1 |
Thomas and Betts - 54147UF - Package Information
| Inner Quantity | 20 |
|---|---|
| Inner Dimensions (inches) | 3.3x2.8x2.3 |
| Outer Quantity | 200 |
| Outer Dimensions (inches) | 3.3x2.8x2.5 |
| Weight Uom | 2.5 lbs. per 100 |
