Brand: Thomas & Betts
|
SKU:
825278

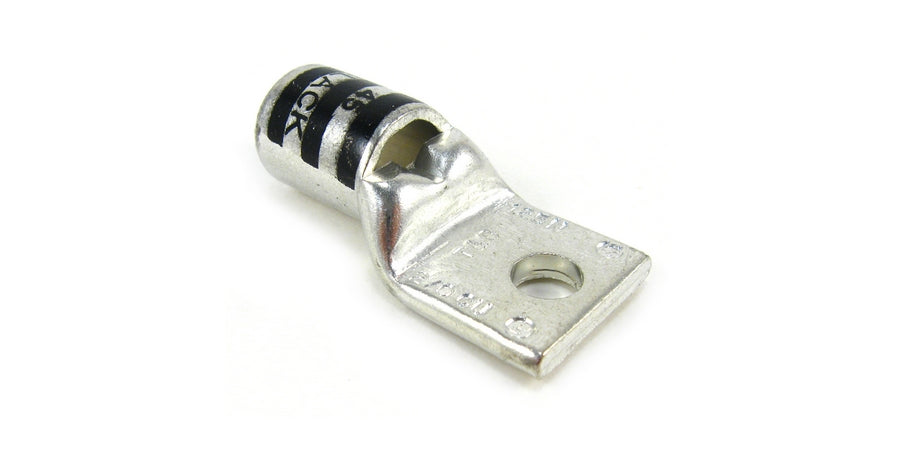

Thomas & Betts 54157 | Compression Lug, Standard Barrel, 1-Hole, 2/0 AWG Conductor, Wrought Copper, Black Color Code
Regular price
$14.76
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 54157 | Compression Lug, Standard Barrel, 1-Hole...
Regular price
$14.76
Unit price
Brand: Thomas & Betts
|
SKU:
825278
Regular price
$14.76
Unit price
Description
Description
Thomas & Betts 54157 | Compression Lug, Standard Barrel, 1-Hole, 2/0 AWG Conductor, Wrought Copper, Black Color Code
Specifications
Specifications
Thomas & Betts - 54157 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Compression Grounding and Bonding
- Compression Lugs
Thomas & Betts - 54157 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 54157 |
| Item Description | Compression Lug, Standard Barrel, 1-Hole, 2/0 AWG Conductor, Wrought Copper, Black Color Code |
| UPC | 78621054157 |
| Barrel Size | Dia: 0.57 In. |
| Barrel Type | Standard |
| Barrel | Standard |
| Color Code | Black |
| Conductor Material | Copper |
| Conductor Size - Code | 2/0 Awg |
| Conductor Size - Flex | 1/0 Weld 275/24 Str |
| Conductor Size - Navy | 125 Navy |
| Conductor Size | 2/0 Awg |
| Die Index | 45 |
| Finish | Electro Tin-Plated |
| Inspection Hole | Yes |
| Insulation | Non-Insulated |
| Lug L X Tongue W | Lug L: 1.65 In. X Tongue W: 0.83 In. |
| Material | Wrought Copper |
| Number Of Holes | 1.0 |
| Overall Length | 1.65 In. |
| Overall Width | 0.83 In. |
| Product Type | Non-Insulated Compression Lug |
| Special Feature | Inspection Hole |
| Stud Size | 1/4 In. |
| Tongue Angle | Straight |
| Tongue Length | 0.65 In. |
| Tongue Size | Lxwxt: 0.65 X 0.83 X 0.13 In. |
| Tongue Thickness | 0.13 In. |
| Tongue Type | Straight |
| Tongue Width | 0.83 In. |
| Voltage Rating | 600 V To 35 Kv |
| Voltage | 35 Kv |
| Approval | UL, CSA |
