Brand: Thomas & Betts | SKU: 826305

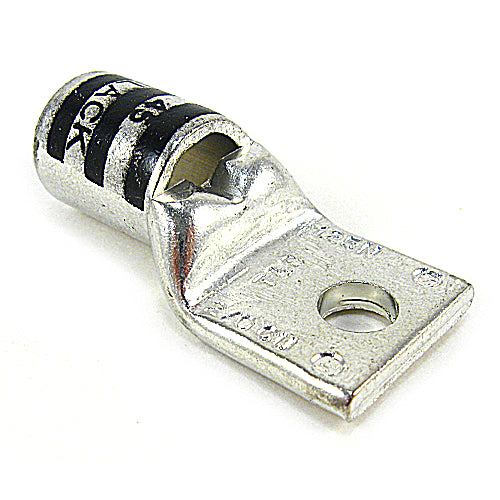

Thomas & Betts 54160T | Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 2/0 AWG, Tin Plated, Top Stacking, Die Code 45, Black

$14.91

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Thomas and Betts 54160T | Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 2/0 AWG, Tin Plated, Top Stacking, Die Code 45, Black

Copper One-Hole Lug, Standard Barrel - Top Stacking, Peep Hole, Max 35kV, Wire Size 2/0 AWG, 1/2 Inch Bolt Size, Tin Plated, Die Code 45, Die Color Code Black

Specifications

Thomas and Betts - 54160T - North American Specifications

UNSPSC	39121405 Cable or wire lug
IGCC	4532 Cable or wire lug
Brand Name	Color Keyed / Blackburn
Type	Standard Barrel
Standard	UL E9809
Cable Size	2/0 AWG
Stud Size	1/2 in
Number Of Holes	1
Voltage Rating	35 kV
Insulation	None
Material	Copper
Color	Black

Thomas and Betts - 54160T - European Specifications

ETIM	EC001051 Tube cable lug for copper conductors
Connecting angle	Straight
Slender flange model	N
Insulated	N
With sight-hole	Y
Material	Copper
Surface protection	Tinned
Number of fixing holes	1

Thomas and Betts - 54160T - Package Information

Inner Quantity	10
Inner Dimensions (inches)	3.3x2.8x2.3
Outer Quantity	100
Outer Dimensions (inches)	12.2x6x3.4
Weight Uom	8.5 lbs. per 100
