Brand: Thomas & Betts
|
SKU:
825504
Thomas & Betts 5416510 | Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 3/0 AWG, 5/8 in Bolt Size
Regular price
$14.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 5416510 | Copper One-Hole Lug, Standard Barrel, ...
Regular price
$14.76
Unit price
Brand: Thomas & Betts
|
SKU:
825504
Regular price
$14.76
Unit price
Shipping calculated at checkout.
Description
Description

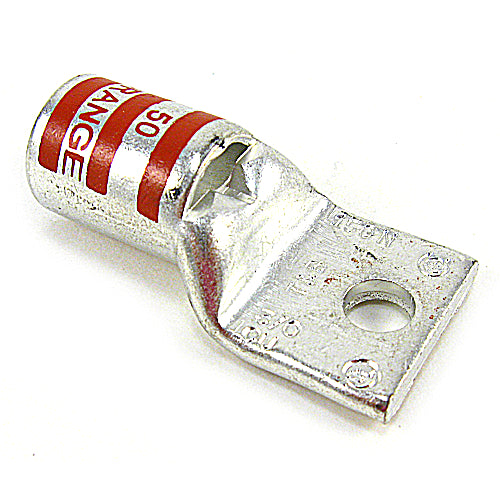

Thomas and Betts 5416510 | Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 3/0 AWG, 5/8 in Bolt Size
Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 3/0 AWG, 5/8 Inch Bolt Size, Tin Plated, Die Code 50, Die Color Code Orange
Specifications
Specifications
Thomas and Betts - 5416510 - North American Specifications
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| IGCC | 4532 Cable or wire lug |
| Brand Name | Color Keyed / Blackburn |
| Type | Standard Barrel |
| Stud Size | 5/8 in |
| Number Of Holes | 1 |
| Voltage Rating | 35 kV |
| Insulation | None |
| Material | Copper |
| Color | Orange |
Thomas and Betts - 5416510 - European Specifications
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Connecting angle | Straight |
| Slender flange model | N |
| Insulated | N |
| With sight-hole | Y |
| Material | Copper |
| Surface protection | Tinned |
| Number of fixing holes | 1 |
Thomas and Betts - 5416510 - Package Information
| Outer Quantity | 10 |
|---|---|
| Outer Dimensions (inches) | 3.3x2.8x2.3 |
| Weight Uom | 13 lbs. per 100 |
