Description
Description

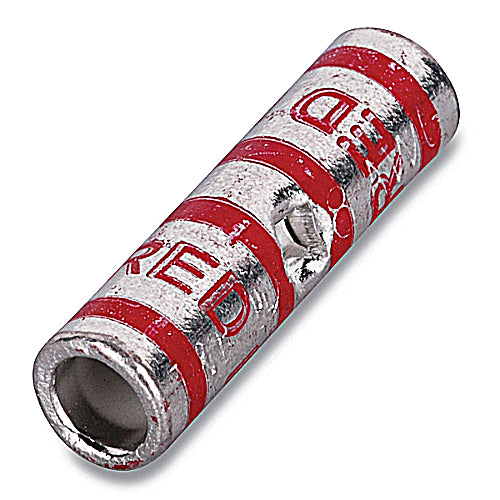

Thomas and Betts 54515 | Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 350 kcmil, Tin Plated, Die Code 71, Red
Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 350 kcmil, Tin Plated, Die Code 71, Die Color Code Red
Thomas and Betts - 54515 - Features
- Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
Specifications
Specifications
Thomas and Betts - 54515 - North American Specifications
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| IGCC | 4669 Wire or cable compression splice |
| Brand Name | Color Keyed / Blackburn |
| Type | Splice |
| Special Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost. |
| Standard | UL E9809 |
| Material | Copper |
| Finish | Tin Plated |
| Color | Red |
| Voltage Rating | 600 V |
| Insulation | None |
Thomas and Betts - 54515 - European Specifications
| ETIM | EC001059 Crimp splices for copper conductor |
|---|---|
| AWG-range | 350-350 |
| Sleeve form | Short |
| Material | Copper |
| Surface protection | Tinned |
| Insulation | None |
| Voltage row | Up to 35kV |
| Type of connection | End connector |
Thomas and Betts - 54515 - Package Information
| Inner Quantity | 10 |
|---|---|
| Inner Dimensions (inches) | 3.5x3x3 |
| Outer Quantity | 100 |
| Outer Dimensions (inches) | 16.4x8x4 |
| Weight Uom | 16.5 lbs. per 100 |
