Brand: Thomas & Betts
|
SKU:
836023
Thomas & Betts 54625-TB | Copper Cable Joint, Wire Range Min: 4 8 Sol Or Str, Max: 1 2 Str With 2 12 Sol Or Str, Tin Plated, Green Die
Regular price
$16.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 54625-TB | Copper Cable Joint, Wire Range Min: 4...
Regular price
$16.81
Unit price
Brand: Thomas & Betts
|
SKU:
836023
Regular price
$16.81
Unit price
Shipping calculated at checkout.
Description
Description

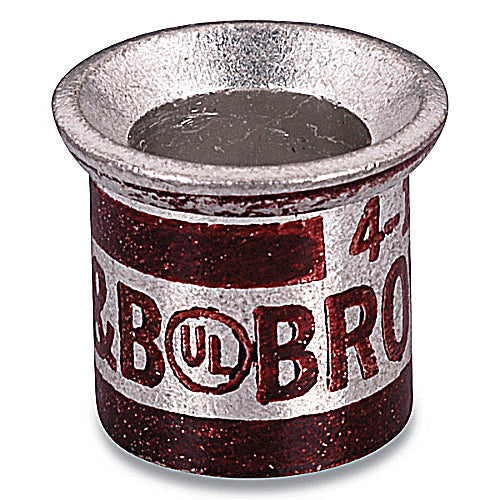

Thomas and Betts 54625-TB | Copper Cable Joint, Wire Range Min: 4 8 Sol Or Str, Max: 1 2 Str With 2 12 Sol Or Str, Tin Plated, Green Die
Copper Cable Joint, Wire Range Min: 4 8 Sol or Str, Max: 1 2 Str with 2 12 Sol or Str, Tin Plated, Green Die
Thomas and Betts - 54625-TB - Features
- Ideal for pigtailing, tapping multiple conductors or 2-way splicing.
- Offers lowest installed cost.
- Form a permanent installation in miminal space. Easily insulated.
- Color-coded to dies for positive matching and compression.
- Application Tools: TBM8, TBM8S, TBM5, TBM5S, TBM6, TBM6S
Specifications
Specifications
Thomas and Betts - 54625-TB - North American Specifications
| UNSPSC | 39121452 Cable joint |
|---|---|
| IGCC | 4677 Cable joint |
| Brand Name | Color Keyed / Blackburn |
| Type | Wire Joint |
| Special Features | Ideal for pigtailing, tapping multiple conductors or 2-way splicing. Offers lowest installed cost. |
| Standard | UL E9809 |
| Material | Copper |
| Finish | Tin-Plated |
| Color | Green |
| Insulation | None |
Thomas and Betts - 54625-TB - European Specifications
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Slender flange model | N |
| Insulated | N |
| Material | Copper |
| Surface protection | Tinned |
Thomas and Betts - 54625-TB - Package Information
| Inner Quantity | 10 |
|---|---|
| Inner Dimensions (inches) | 5x3x0 |
| Outer Quantity | 100 |
| Outer Dimensions (inches) | 5.3x4.3x3.5 |
| Weight Uom | 1.63 lbs. per 100 |
