Brand: Thomas & Betts
|
SKU:
835916

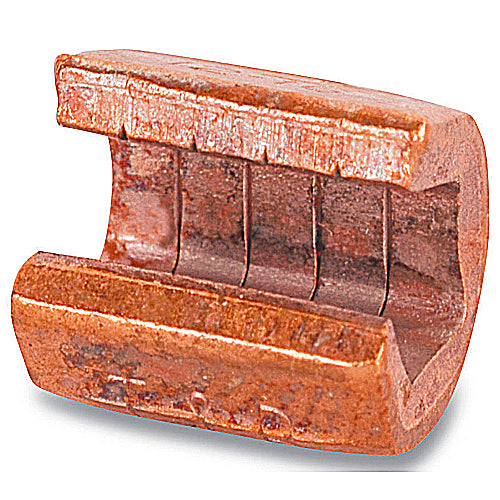

Thomas & Betts 54710 | Copper C-tap, 600V, Wire Range-main: 10-8, Branch 10-12, Die Code 24, Die Color Code Blue
Regular price
$9.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 54710 | Copper C-tap, 600V, Wire Range-main: 10-...
Regular price
$9.27
Unit price
Description
Description
Thomas and Betts 54710 | Copper C-tap, 600V, Wire Range-main: 10-8, Branch 10-12, Die Code 24, Die Color Code Blue

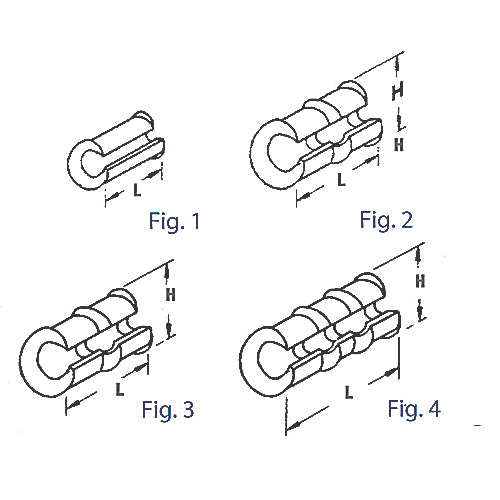

Copper C-Tap, 600V, Wire Range-Main: 10-8, Branch 10-12, Length 9/16 Inch, Height 7/16, Inch, Die Code 24, Die Color Code Blue
Thomas and Betts - 54710 - Features
- Positive, all-around compression with low resistance and high pull-out values.
- Ideal for pigtailing, 2-way splicing or tapping to an unbroken continuous main.
- Heavy reinforcing ribs help locate compression dies and strengthen compressed joint.
Specifications
Specifications
Thomas and Betts - 54710 - North American Specifications
| UNSPSC | 39121428 Electrical taps |
|---|---|
| IGCC | 4600 Electrical taps |
| Brand Name | Color Keyed / Blackburn |
| Type | C-Tap |
| Special Features | Positive, all-around compression with low resistance and high pull-out values. |
| Standard | UL E9809 |
| Conductor Size | 10-8 AWG |
| Tap Size | 10 to 12 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Finish | Plain |
Thomas and Betts - 54710 - European Specifications
| ETIM | EC002290 C-clamp for round wire |
|---|---|
| Tinned | N |
Thomas and Betts - 54710 - Package Information
| Inner Quantity | 100 |
|---|---|
| Inner Dimensions (inches) | 7.6x6.6x3.5 |
| Outer Quantity | 500 |
| Outer Dimensions (inches) | 7.9x7.1x4.2 |
| Weight Uom | 1 lbs. per 100 |
