Brand: Thomas & Betts | SKU: 836030

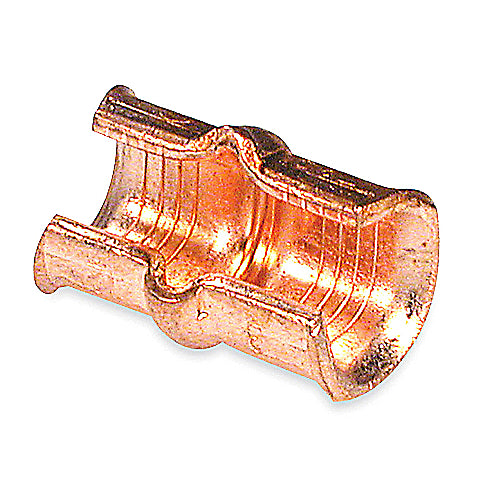

Thomas & Betts 54740TP | Copper C-tap For 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Tin Plated, Die Color Code Orange

$23.26

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Thomas and Betts 54740TP | Copper C-tap For 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Tin Plated, Die Color Code Orange

Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange

Thomas and Betts - 54740TP - Features

Positive, all-around compression with low resistance and high pull-out values.
Ideal for pigtailing, 2-way splicing or tapping to an unbroken continuous main.
Heavy reinforcing ribs help locate compression dies and strengthen compressed joint.

Specifications

Thomas and Betts - 54740TP - North American Specifications

UNSPSC	39121428 Electrical taps
IGCC	4600 Electrical taps
Brand Name	Color Keyed / Blackburn
Type	C-Tap
Special Features	Positive, all-around compression with low resistance and high pull-out values.
Conductor Size	2-1/0
Tap Size	2 to 12 AWG
Voltage Rating	600 V
Material	Copper
Finish	Tin-Plated

Thomas and Betts - 54740TP - European Specifications

ETIM	EC002290 C-clamp for round wire
Tinned	Y

Thomas and Betts - 54740TP - Package Information

Outer Quantity	50
Outer Dimensions (inches)	6.3x4.7x3
Weight Uom	9.5 lbs. per 100

Documents and Downloads

Thomas and Betts 54740TP Technical Drawing/Data Sheet US
