Brand: Thomas & Betts
|
SKU:
836033
Thomas & Betts 54755TP | Copper C-tap, Wire Range Main: 1-4/0 Branch 2/0-8, Tin-plated, Die Color Code Blue, Number Of Crimps 2
Regular price
$38.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 54755TP | Copper C-tap, Wire Range Main: 1-4/0 B...
Regular price
$38.77
Unit price
Brand: Thomas & Betts
|
SKU:
836033
Regular price
$38.77
Unit price
Shipping calculated at checkout.
Description
Description

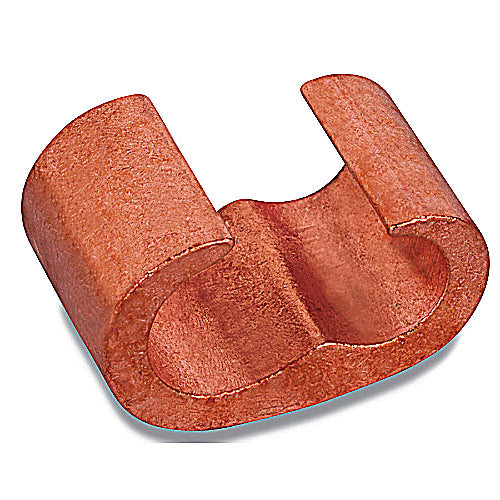

Thomas and Betts 54755TP | Copper C-tap, Wire Range Main: 1-4/0 Branch 2/0-8, Tin-plated, Die Color Code Blue, Number Of Crimps 2
Copper C-Tap, Wire Range Main: 1-4/0 Branch 2/0-8, Tin-Plated, Die Code 76, Die Color Code Blue, Number of Crimps 2
Thomas and Betts - 54755TP - Features
- More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance.
- Color-coded for easy matching with proper die.
- Easy to work with in tight spaces. Barely larger than conductor insulation once installed.
- Application Tools: TBM15I
Specifications
Specifications
Thomas and Betts - 54755TP - North American Specifications
| UNSPSC | 39121428 Electrical taps |
|---|---|
| IGCC | 4600 Electrical taps |
| Brand Name | Color Keyed / Blackburn |
| Type | C-Tap |
| Special Features | More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance. |
| Conductor Size | 1-4/0 AWG |
| Tap Size | 2/0 to 8 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Finish | Tin Plated |
Thomas and Betts - 54755TP - European Specifications
| ETIM | EC000514 Connector for lightning protection |
|---|---|
| Type of connector | Clamp connector |
| Material | Copper |
| Surface protection | Other |
Thomas and Betts - 54755TP - Package Information
| Outer Quantity | 25 |
|---|---|
| Outer Dimensions (inches) | 5.6x2.7x6 |
| Weight Uom | 0.63 lbs. per 1000 |
