Brand: Thomas & Betts
|
SKU:
835921
Thomas & Betts 54760 | Copper C-tap, Wire Range Main: 2/0-250, Branch 4/0-8, Plain Finish, Die Code 87H, Die Color Code Brown, Number Of Crimps 2
Regular price
$73.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 54760 | Copper C-tap, Wire Range Main: 2/0-250, ...
Regular price
$73.67
Unit price
Brand: Thomas & Betts
|
SKU:
835921
Regular price
$73.67
Unit price
Shipping calculated at checkout.
Description
Description

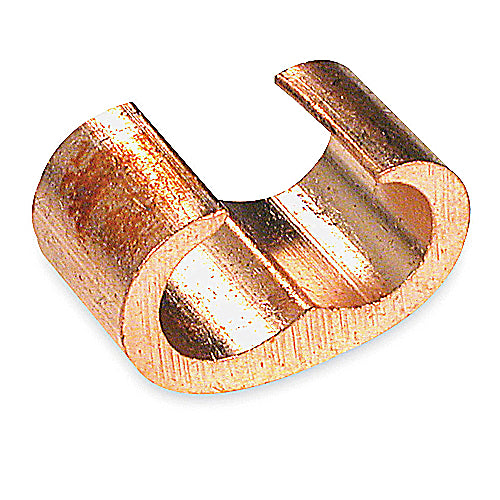

Thomas and Betts 54760 | Copper C-tap, Wire Range Main: 2/0-250, Branch 4/0-8, Plain Finish, Die Code 87H, Die Color Code Brown, Number Of Crimps 2
Copper C-Tap, Wire Range Main: 2/0-250, Branch 4/0-8, Plain Finish, Die Code 87H, Die Color Code Brown, Number of Crimps 2
Thomas and Betts - 54760 - Features
- More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance.
- Color-coded for easy matching with proper die.
- Easy to work with in tight spaces. Barely larger than conductor insulation once installed.
- Application Tools: TBM15I
Specifications
Specifications
Thomas and Betts - 54760 - North American Specifications
| UNSPSC | 39121428 Electrical taps |
|---|---|
| IGCC | 4600 Electrical taps |
| Brand Name | Color Keyed / Blackburn |
| Type | C-Tap |
| Special Features | More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance. |
| Standard | UL E9809 |
| Conductor Size | 2/0 AWG - 250kcmil |
| Tap Size | 4/0 to 8 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Finish | Plain |
Thomas and Betts - 54760 - European Specifications
| ETIM | EC000514 Connector for lightning protection |
|---|---|
| Type of connector | Clamp connector |
| Material | Copper |
| Surface protection | Untreated |
Thomas and Betts - 54760 - Package Information
| Outer Quantity | 25 |
|---|---|
| Outer Dimensions (inches) | 5.4x4.8x3.5 |
| Weight Uom | 11.5 lbs. per 100 |
