Brand: Thomas & Betts | SKU: 826603

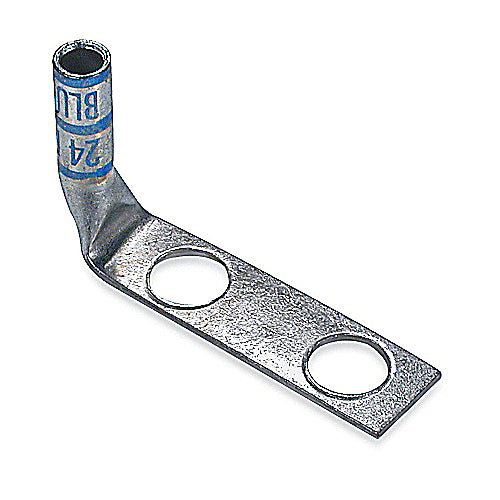

Thomas & Betts 54852BEUB | Copper Two-Hole Lug, 90 Degree Bend Long Barrel, Blind End, Max 35kV, 6 AWG Wire, 1/4 in Bolt Size, 5/8 in Hole Spacing, Tin Plated, Die Code 24, Blue

$32.32

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Thomas and Betts 54852BEUB | Copper Two-Hole Lug, 90 Degree Bend Long Barrel, Blind End, Max 35kV, 6 AWG Wire, 1/4 in Bolt Size, 5/8 in Hole Spacing, Tin Plated, Die Code 24, Blue

Copper Two-Hole Lug, 90 Degree Bend Long Barrel, Blind End, Max 35kV, 6 AWG Wire, 1/4 Inch Bolt Size, 5/8 Inch Hole Spacing, Tin Plated, Die Code 24, Die Color Code Blue

Specifications

Thomas and Betts - 54852BEUB - North American Specifications

UNSPSC	39121405 Cable or wire lug
IGCC	4532 Cable or wire lug
Brand Name	Color Keyed / Blackburn
Type	Long Barrel 90 Degree Bend
Standard	UL E9809
Cable Size	6 AWG
Stud Size	1/4 in
Number Of Holes	2
Voltage Rating	35 kV
Insulation	None
Material	Copper
Color	Blue

Thomas and Betts - 54852BEUB - European Specifications

ETIM	EC001051 Tube cable lug for copper conductors
Connecting angle	90°
Slender flange model	N
Insulated	N
With sight-hole	N
Material	Copper
Surface protection	Tinned
Number of fixing holes	2

Thomas and Betts - 54852BEUB - Package Information

Inner Quantity	50
Inner Dimensions (inches)	3.5x3x3
Outer Quantity	500
Outer Dimensions (inches)	16.5x7.5x3.5
Weight Uom	2.5 lbs. per 1000
