Brand: Thomas & Betts
|
SKU:
835343

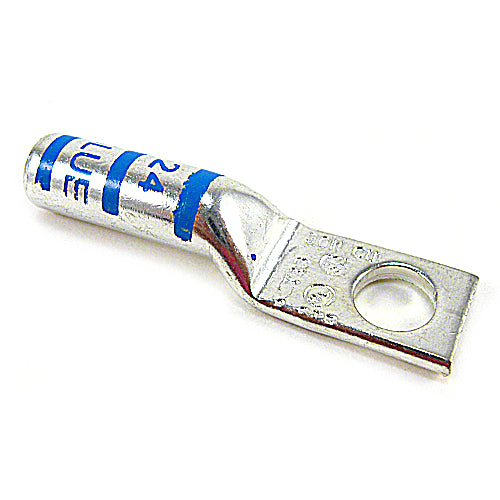

Thomas & Betts 54905BEPH | Copper One-hole Lug, Long Barrel, Peep Hole, Max 35kv, Wire Size 6 AWG, Tin Plated, Die Color Code Blue
Regular price
$10.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 54905BEPH | Copper One-hole Lug, Long Barrel, Pe...
Regular price
$10.59
Unit price
Brand: Thomas & Betts
|
SKU:
835343
Regular price
$10.59
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts 54905BEPH | Copper One-hole Lug, Long Barrel, Peep Hole, Max 35kv, Wire Size 6 AWG, Tin Plated, Die Color Code Blue
Copper One-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 6 AWG, 1/4 Inch Bolt Size, Tin Plated, Die Code 24, Die Color Code Blue
Specifications
Specifications
Thomas and Betts - 54905BEPH - North American Specifications
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| IGCC | 4532 Cable or wire lug |
| Brand Name | Color Keyed / Blackburn |
| Type | Long Barrel |
| Standard | UL E9809 |
| Cable Size | 6 AWG |
| Stud Size | 1/4 in |
| Number Of Holes | 1 |
| Voltage Rating | 35 kV |
| Insulation | None |
| Material | Copper |
| Color | Blue |
Thomas and Betts - 54905BEPH - European Specifications
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Connecting angle | Straight |
| Slender flange model | N |
| Insulated | N |
| With sight-hole | Y |
| Material | Copper |
| Surface protection | Tinned |
| Number of fixing holes | 1 |
Thomas and Betts - 54905BEPH - Package Information
| Inner Quantity | 50 |
|---|---|
| Inner Dimensions (inches) | 3.25x2.75x2.25 |
| Outer Quantity | 500 |
| Outer Dimensions (inches) | 12.2x6.5x3.5 |
| Weight Uom | 1.25 lbs. per 100 |
