Brand: Thomas & Betts
|
SKU:
950021
Thomas & Betts 54906BE | Blackburn Color-Keyed One-Hole Long Barrel Copper Compression Lug
Regular price
$661.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 54906BE | Blackburn Color-Keyed One-Hole Long Ba...
Regular price
$661.78
Unit price
Brand: Thomas & Betts
|
SKU:
950021
Regular price
$661.78
Unit price
Shipping calculated at checkout.
Description
Description

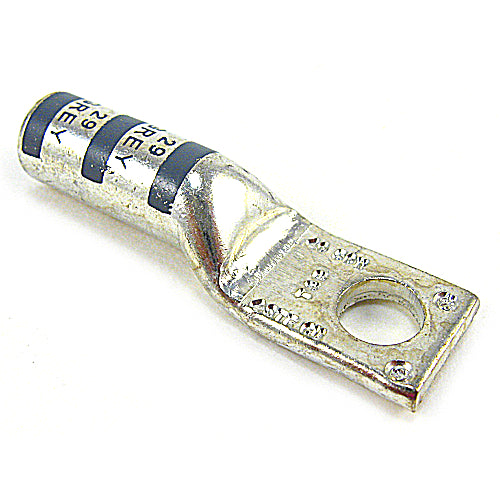

Thomas and Betts 54906BE | Blackburn Color-Keyed One-Hole Long Barrel Copper Compression Lug

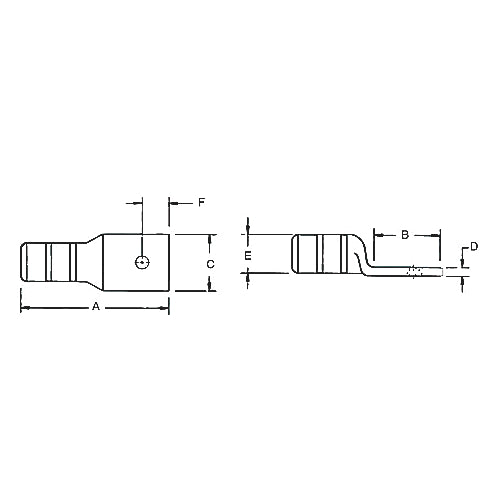

Copper One-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 4 AWG, 1/4 Inch Bolt Size, Tin Plated, Die Code 29, Die Color Code Gray
Specifications
Specifications
Thomas and Betts - 54906BE - North American Specifications
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| IGCC | 4532 Cable or wire lug |
| Brand Name | Color Keyed / Blackburn |
| Type | Long Barrel |
| Standard | UL E9809 |
| Cable Size | 4 AWG |
| Stud Size | 1/4 in |
| Number Of Holes | 1 |
| Voltage Rating | 35 kV |
| Insulation | None |
| Material | Copper |
| Color | Gray |
Thomas and Betts - 54906BE - European Specifications
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Connecting angle | Straight |
| Slender flange model | N |
| Insulated | N |
| With sight-hole | N |
| Material | Copper |
| Surface protection | Tinned |
| Number of fixing holes | 1 |
Thomas and Betts - 54906BE - Package Information
| Inner Quantity | 50 |
|---|---|
| Inner Dimensions (inches) | 3.3x2.8x2.3 |
| Outer Quantity | 500 |
| Outer Dimensions (inches) | 12.2x6x3.4 |
| Weight Uom | 2.64 lbs. per 100 |
Documents and Downloads
Documents and Downloads
