Brand: Thomas & Betts | SKU: 825359

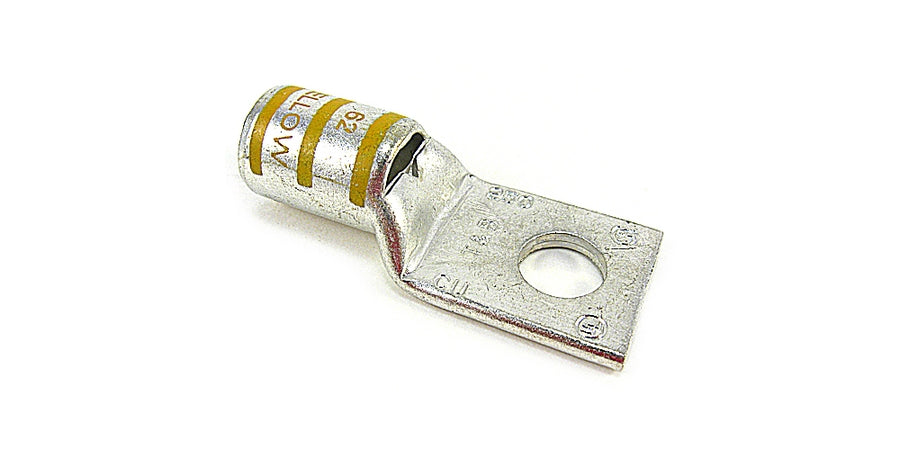

Thomas & Betts 58163 | Compression Lug, Standard Barrel, 1-Hole, 4/0 AWG Conductor, Wrought Copper, Yellow Color Code

$17.22

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Thomas & Betts 58163 | Compression Lug, Standard Barrel, 1-Hole, 4/0 AWG Conductor, Wrought Copper, Yellow Color Code

Specifications

Thomas & Betts - 58163 - Product Categories

Electrical Supplies and Lighting
Electrical Supplies
Compression Grounding and Bonding
Compression Lugs

Thomas & Betts - 58163 - Specifications

Brand Name	Thomas & Betts
Manufacturer Part Number	58163
Item Description	Compression Lug, Standard Barrel, 1-Hole, 4/0 AWG Conductor, Wrought Copper, Yellow Color Code
UPC	78621058163
Barrel Size	Dia: 0.79 In.
Barrel Type	Standard
Color Code	Yellow
Conductor Material	Copper
Conductor Size - Code	4/0 Weld
Conductor Size - Flex	4/0 Flex 550/24 Str
Conductor Size	4/0 Awg
Die Index	62
Finish	Electro Tin-Plated
Inspection Hole	Yes
Insulation	Non-Insulated
Lug L X Tongue W	Lug L: 2.38 In. X Tongue W: 1.25 In.
Material	Wrought Copper
Number Of Holes	1.0
Overall Length	2.38 In.
Overall Width	1-1/4 In.
Product Type	Non-Insulated Compression Lug
Special Feature	Inspection Hole
Stud Size	3/8 In.
Tongue Angle	Straight
Tongue Length	0.93 In.
Tongue Size	Lxwxt: 0.93 X 1.25 X 0.15 In.
Tongue Thickness	0.15 In.
Tongue Type	Straight
Tongue Width	1-1/4 In.
Voltage Rating	600 V To 35 Kv
Voltage	35 Kv
Approval	UL, CSA
